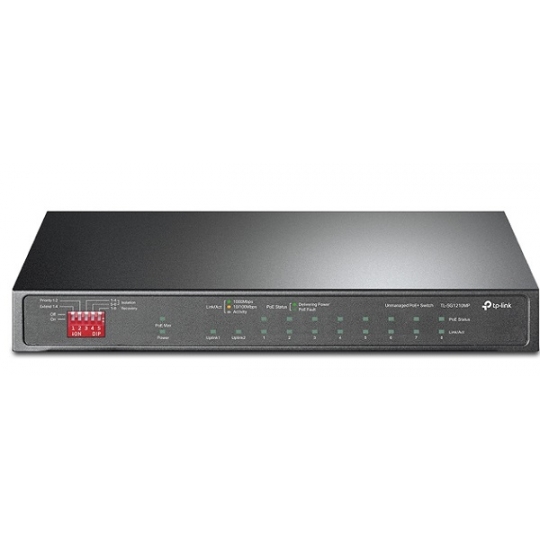

10-Port Gigabit with 8-Port PoE+ Unmanaged Switch TP-LINK TL-SG1210MP
- TL-SG1210MP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
- 9 × gigabit RJ45 ports, and 1 × gigabit combo SFP/RJ45 Port.
- 8 × PoE+ ports transfer data and power via a single cable with a total power budget of 123W.
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30W for each PoE port.
- Up to 250m data and power transmission range under Extend Mode.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required.
- Fanless design reduces power consumption and works silently in its location.
- TL-SG1210MP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
- 9 × gigabit RJ45 ports, and 1 × gigabit combo SFP/RJ45 Port.
- 8 × PoE+ ports transfer data and power via a single cable with a total power budget of 123W.
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30W for each PoE port.
- Up to 250m data and power transmission range under Extend Mode.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required.
- Fanless design reduces power consumption and works silently in its location.
Specifications
Model | TL-SG1210MP |
Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z |
Network Ports | 9 10/100/1000 Mbps RJ45 Ports; 1 Gigabit Combo Port |
Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
PoE | PoE Standard: IEEE 802.3af, IEEE 802.3at PoE Port 1–8, up to 30W per port PoE Power Budget 123W |
Auto-Negotiation | Yes |
Auto MDI/MDIX | Yes |
PoE Power on RJ45 | Power+: pin 3 & pin 6 Power -: pin 1 & pin 2 |
Max Power Consumption | 7.93W (220 V/50 Hz no PD connected) 141.40W (220V/50Hz with 123W PD connected) |
Max Heat Dissipation | 27.04 BTU/h (220V/50Hz no PD connected) 482.17 BTU/h (220V/50Hz with 123W PD connected) |
Forwarding Mode | Store and Forward |
Switch Capacity | 20 Gbps |
MAC Address Table | 4K, Auto-learning, Auto-aging |
Extend Mode | Yes (For Ports 1–4) |
Priority Mode | Yes (For Ports 1–2) |
Isolation Mode | Yes (For Ports 1–4 / 5-8) |
PoE Auto Recovery | Yes (For Ports 1-8) |
Flow Conrol | Yes |
Fanless | Yes |
LED | Power, Link/Act, PoE Status, PoE MAX |
Dimensions | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
Certification | CE, FCC |
Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
