Model |

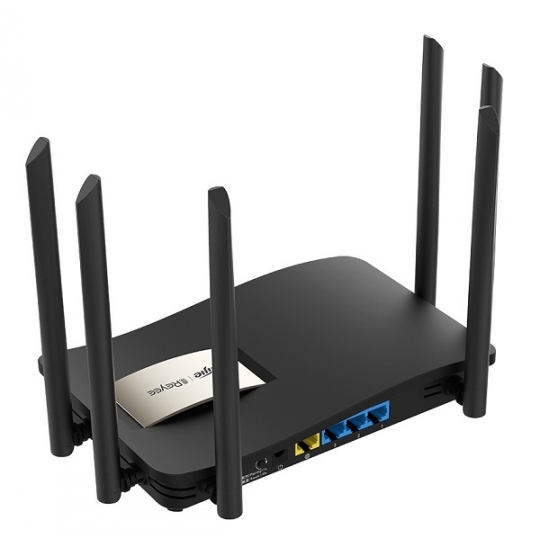

RG-EW1200G Pro |
Wireless |
2.4GHz 2*2: maximum rate 400Mbps
5GHz 2*2: maximum rate 867Mbps |
Antenna |
External 6dBi non-removable omnidirectional antennas |
Wireless Specs |
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
Support beamforming |
Frequency band |
Independent 2.4GHz and 5GHz modules, supporting dual frequency integration |
Wi-Fi channel |
2.4GHz Channel; 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5GHz Channel: 36, 40, 44, 48, 149, 153, 157, 161, 165 |
Ports |
1 10/100/1000M WAN port (Auto MDI/MDIX)
3 10/100/1000M LAN ports (Auto MDI/MDIX) |
Routing mode |
PPPoE/ DHCP/ static IP; relay mode: wired relay/ wireless relay |
Main features |
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server: port mapping, DMZ, etc.
DDNS: Oray
UPnP |
Wireless security |
WPA-PSK/WPA2-PSK encryption |
ARP protection |
IP/MAC binding |
Network security |
SSID hiding
Preventing rogue devices (Blacklist/ whitelist)
Internet access control |
Advanced features |
Reyee Mesh
Wi-Fi optimization
Hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Automatic & manual cloud software upgrade |
Management mode |
Local web page
Cloud management: MACC cloud platform
Ruijie Cloud app: iOS version, Android version |
Power supply |
12VDC/1.5A |
Maximum power |
<14W |
Dimensions |
220 x 140 x 36 mm |
Weight |
0.98kg |
Operating temperature |
0-45℃ |
