- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
- Green Ethernet technology saves power consumption.
- IEEE 802.3x flow control provides reliable data transfer.
- Steel housing, desktop or wall-mounting design.
- Support 802.1p/DSCP QoS and IGMP Snooping function.
- Plug and play, with no configuration needed.
Specifications
HARDWARE FEATURES |
Standards and Protocols |
IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p |
Interface |
16 × 10/100/1000Mbps Ports
Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity |
Fanless |
External Power Supply |
External Power Adapter 100VAC ~ 240VAC
(Output: 12VDC / 1.0A) |
LED Indicator |
System Power
Link/Act indicators per port built into each RJ-45 port |
Dimensions ( W x D x H ) |
11.3 × 4.4 × 1.0 in.
(286 × 112 × 25 mm) |
Max Power Consumption |
10W |
Max Heat Dissipation |
34.1 BTU/h |
PERFORMANCE |
Packet Forwarding Rate |
23.8Mpps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1Mb |
Jumbo Frame |
10KB |
SOFTWARE FEATURES |
Advanced Features |
Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping |
Transfer Method |
Store and Forward |
OTHERS |
Certification |
FCC ,RoHS |
Package Contents |

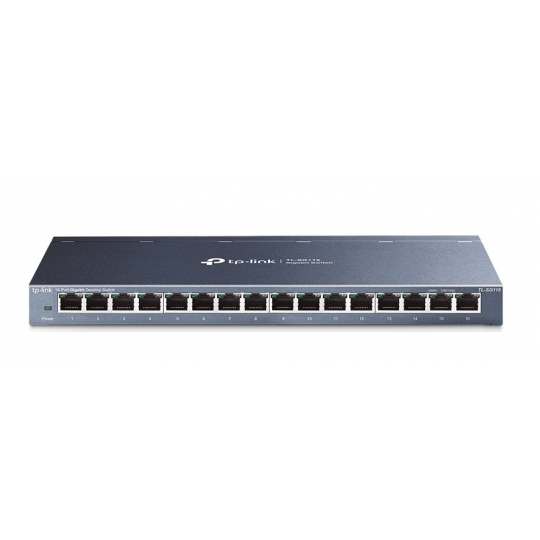

16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing |
