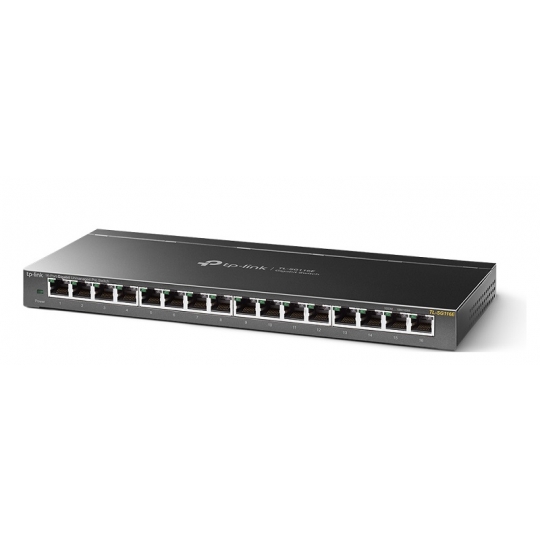

16-Port Gigabit Unmanaged Pro Switch TP-LINK TL-SG116E
16 10/100/1000Mbps RJ45 ports.
- Plug and play, with no configuration required.
- Durable metal casing of superior quality and professional appearance.
- Intelligent management via a web user interface and downloadable utility.
- Green technology reduces power consumption.
16 10/100/1000Mbps RJ45 ports.
- Plug and play, with no configuration required.
- Durable metal casing of superior quality and professional appearance.
- Intelligent management via a web user interface and downloadable utility.
- Green technology reduces power consumption.
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 9VDC/0.6A) |
| Dimensions ( W x D x H ) | 11.3x4.4x1.0 inch (286x111.7x25.4 mm) |
| Max Power Consumption | 9.19W(220V/50Hz) |
| Max Heat Dissipation | 31.36BTU/h |
| PERFORMANCE | |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.81Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG116E Power Cord Installation Guide Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
