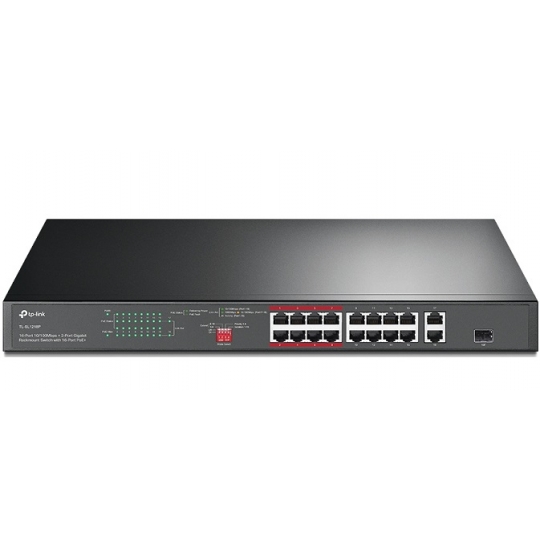

- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30W for each PoE port and 150W for all PoE ports.
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Đặc tính kỹ thuật
HARDWARE FEATURES |
Interface |
16× PoE+ 10/100 Mbps RJ45 Ports
2× 10/100/1000 Mbps RJ45 Ports
1× Combo Gigabit SFP Slot |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF |
Fan Quantity |
2 Fans |
Physical Security Lock |
Yes |
Power Supply |
100–240V AC, 50/60 Hz |
PoE+ Ports (RJ45) |
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 150 W |
Dimensions (W x D x H) |
440 × 180 × 44 mm |
Max Power Consumption |
12.7 W (no power device connected)
172.8 W (with 150W power devices connected) |
Max Heat Dissipation |
43.3 BTU/h (no power device connected)
589.3 BTU/h (with 150W power devices connected) |
PERFORMANCE |
Switching Capacity |
7.2 Gbps |
Packet Forwarding Rate |
5.36 Mpps |
MAC Address Table |
8K |
Jumbo Frame |
10 KB |
SOFTWARE FEATURES |
Advanced Features |
Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control |
Transmission Method |
Store-And-Forward |
OTHERS |
Certification |
CE, FCC, RoHS |
Environment |
Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 36 tháng.
