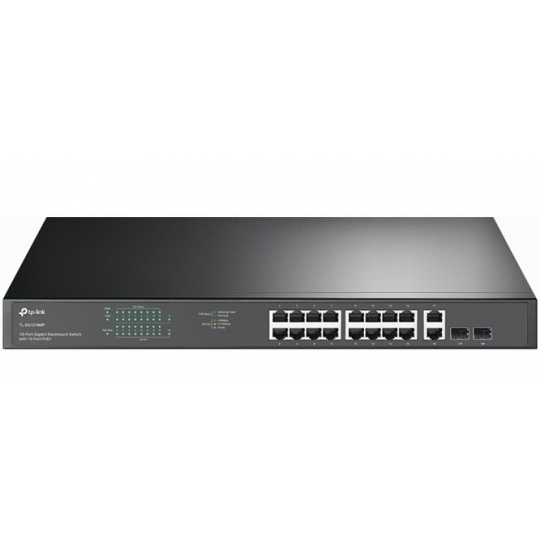

- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30W for each PoE port and 250W for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50℃)
Đặc tính kỹ thuật
HARDWARE FEATURES |
Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface |
16× PoE+ gigabit RJ45 ports
2× gigabit non-PoE RJ45 ports
2× combo gigabit SFP slots |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF |
Fan Quantity |
2 |
Physical Security Lock |
Yes |
Power Supply |
100–240 VAC, 50/60 Hz |
PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 250 W |
Dimensions (W x D x H) |
17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
Mounting |
Rack Mountable |
Max Power Consumption |
21.4 W (220/50 Hz. no PD connected)
286.64 W (220/50 Hz. with 250 W PD connected) |
Max Heat Dissipation |
72.97 BTU/h (no PD connected)
977.44 BTU/h (with 250 W PD connected) |
PERFORMANCE |
Switching Capacity |
36 Gbps |
Packet Forwarding Rate |
26.78 Mbps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs
802.1p/DHCP QoS
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Jumbo Frame |
10 KB |
- Bảo hành: 36 tháng.
