24-port Gigabit Smart Switch Draytek Vigor G1260

-       24-Port 10/100/1000Base-T Gigabit Ethernet + 4 SFP Dual Media port Web Smart Switch

-       24 port Ethernet 10/100/1000, 4 Fiber SFP/Lan Gigabit uplink port, 1 console port

-       Web Smart Switch: VLAN 802.1q, VSM (Virtual Stacking Management), control 16 Vigorswitches via Single IP.

-       Full control via web UI/CLI Management

-       4 Selectable SFP (Fibre Module) Ports

-       Port Based and 802.1q VLAN

-       Quality of Service (QoS)

-       802.1x Security Authentication

-       802.3az EEE (Energy Efficient Ethernet)

-       Port Bandwidth Control

-       Port Mirroring

-       Spanning Tree Protocol (STP)

-       Power: 100 ~ 240VAC

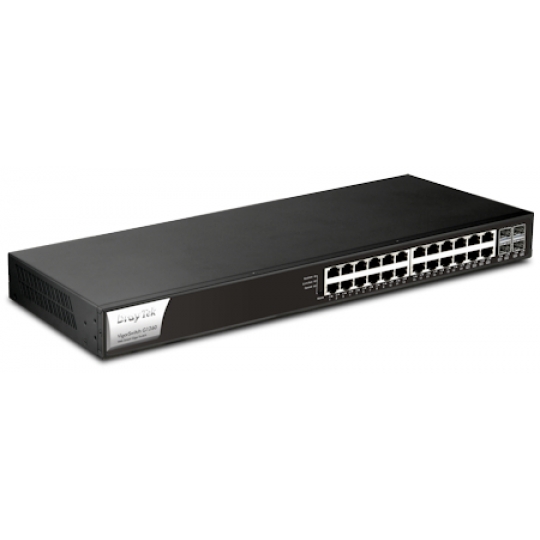

The VigorSwitch G1260 is a high-performance Gigabit Ethernet switch. It provides extensive facilities for maximising your LAN performance and also increasing security security, including VLAN groups (port or tag based) as well as QoS prioritisation and traffic/bandwidth control. The G1260 is also compact, only 170mm deep, ideal for a crowded comms cabinet (standard 19" rack width). Rack mounting brackets are included or the unit can be used on a desk/shelf.

The G1260 has four SFP (Fibre Module) ports which can be used instead of RJ45 ports (ports 21-24). In comparison to 'copper' (RJ45), using fibre for uplinks provides longer range and resilience from electrical interference. Each of the four ports can be used instead of the corresponding copper port (Ports 21,22,23 and 24). The SFP port provides compatibility with your choice of SFP module and therefore the most appropriate fibre technology for your application.

Specifications

-        Physical Interfaces:

o   20+4 Gigabit Ethernet Ports (RJ-45, ports 1-24)

o   4 TP/SFP Dual-media Port (selectable as ports 21-24)

o   Front Panel Reset Button

-        Standards Compliance (IEEE):

o   802.3 10Base-T

o   802.3u 100Base-T

o   802.3ab 1000Base-TX

o   802.3z 1000Base-X Ethernet

o   802.3x Flow Control Capability

o   ANSI/802.3 Auto-negotiation

o   802.1q VLAN

o   802.1p Class of Service

o   802.1x Access Control

o   802.1d Spanning Tree

o   802.1w Rapid Spanning Tree

-        Performance Features:

o   Performance : 36mp/s / 48Gb/s

o   Auto-Negotiation

o   Auto-MDIX

o   Flow Control: Back pressure for Half-Duplex
802.3x Pause Frame for Full-Duplex

o   Switch Fabric : 48Gbps / non-blocking

o   Wire speed performance

o   Mac Address: 8K MAC address table

o   Package buffer memory: 500K Bytes

o   Jumbo frame support to 9KB

-        QoS:

o   Up to 8 hardware queues

o   Strict Priority, DSCP and 802.1p Class of Service (CoS)

o   Supports port based, Tag based and DSCP

o   Supports 802.1p QoS with four level priority queue

o   Strict scheduling

-        VLAN:

o   Port-based VLANs

o   IEEE802.1q tag-base VLAN (4094 tags max)

o   Up to 16 active VLANs

o   Port Isolation

o   Management VLAN

o   egress/ingress packet filter

-        SNMP:

o   SNMP v1, v2c

o   RFC 1213 (MIB-II)

-        Port Mirroring:

o   Up to 23 ports

o   One Session

o   Supports port sniffer function with RX Monitor Mode

-        LACP/Port Trunk:

o   Port trunking with 12 trunking groups

o   Up to 24 ports for each group

o   Static Trunk

-        Broadcast Storm Control

-        LED Indicators:

o   Power

o   Ports 1-24 LINK/ACT
