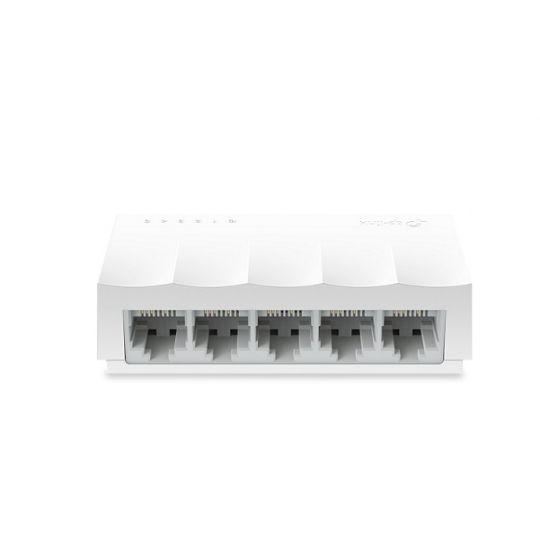

5-Port 10/100Mbps Desktop Network Switch TP-LINK LS1005

- 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX.

- Green Ethernet technology saves power consumption.

- IEEE 802.3X flow control provides reliable data transfer.

- Plastic casing and desktop design.

- Plug and play, no configuration required.

- Fanless design ensures quiet operation.

- 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX.

- Green Ethernet technology saves power consumption.

- IEEE 802.3X flow control provides reliable data transfer.

- Plastic casing and desktop design.

- Plug and play, no configuration required.

- Fanless design ensures quiet operation.

Specifications

Model	LS1005
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Forwarding Mode	Store and forward
Interface	5 10/100Mbps RJ45 ports
Shell material	Plastic
Connector type	Plastic
Switching Capacity	1.0Gbps
MAC Address Table	2K
Packet Forwarding Rate	0.7Mpps
Jumbo Frame	2KB
Advanced Features	Green Technology; 802.3x Flow Control
Max Power Consumption	1.65W
Max Heat Dissipation	5.627Btu/hr
LEDs	Power, Link/Act (indicator per port built into RJ45 port)
Power Supply (External Adapter)	5V/0.6A
Dimensions (W × D × H)	3.3 x 1.8 x 0.9 in. (83.6 x 45.7 x 22.8 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10% ~ 90%RH, non-condensing Storage Humidity: 5%~95%RH, non-condensing
