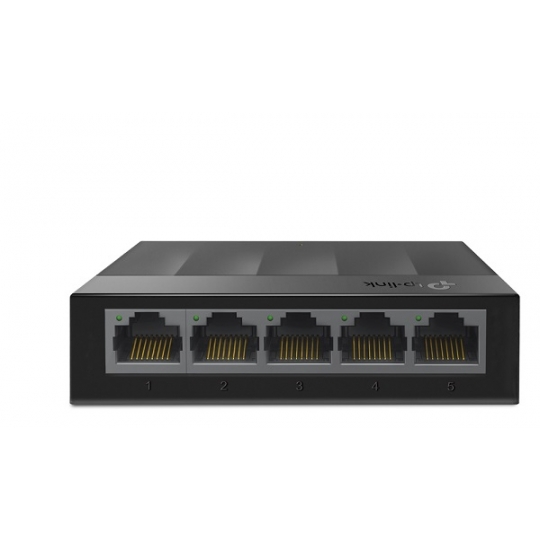

5-Port Gigabit Desktop Switch TP-LINK LS1005G

- Support 5-Port Gigabit Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX.

- Green Ethernet technology saves power.

- IEEE 802.3X flow control provides reliable data transfer.

- Plastic casing, desktop or wall-mounting design.

- Plug and play, no configuration needed.

- Fanless design ensures quiet operation.

- Support 5-Port Gigabit Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX.

- Green Ethernet technology saves power.

- IEEE 802.3X flow control provides reliable data transfer.

- Plastic casing, desktop or wall-mounting design.

- Plug and play, no configuration needed.

- Fanless design ensures quiet operation.

Đặc tính kỹ thuật

Model	LS1005G
HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface	5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )	90 × 72 × 23 mm
Max Power Consumption	3.7W
Max Heat Dissipation	12.617 BTU/h
PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	2K
Packet Buffer Memory	1.5 Mb
Jumbo Frame	16 KB
SOFTWARE FEATURES
Advanced Features	Green Technology 802.3X Flow Control Back Pressure
Transfer Method	Store and Forward
OTHERS
Certification	CE, FCC, RoHS
Package Contents	5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
