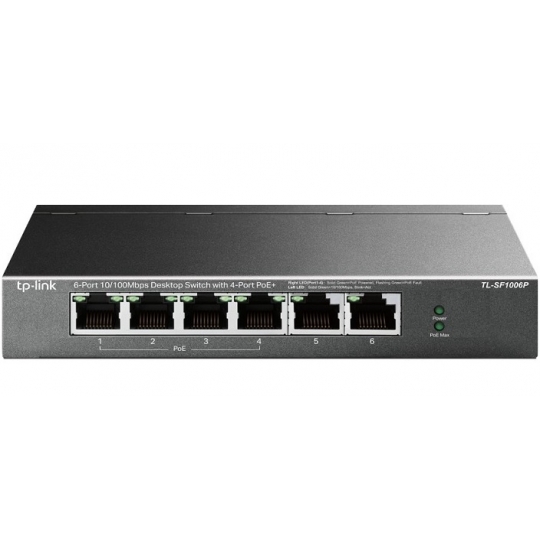

- 6× 10/100 Mbps RJ45 ports.
- 4× PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.
- Up to 250m data and power transmitting range under Extend Mode.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
- Supports PoE Power up to 30 W for each PoE port.
- Supports PoE Power up to 67 W for all PoE ports.
- Plug and play with no configuration required.
Specifications
Hardware |
Interface |
6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity |
Fanless |
Physical Security Lock |
Yes |
External Power Supply |
External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate |
0.8928 Mpps |
PoE Ports (RJ45) |
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-4
Power Supply: 67 W |
Mac Address Table |
2K |
Jumbo Frame |
2 KB |
Switching Capacity |
1.2 Gbps |
Dimensions (W x D x H) |
158 x 101 x 25 mm |
Max Power Consumption |
1.9 W (220 V / 50 Hz, no PD connected)
74 W (220 V / 50 Hz, with 67 W PD connected) |
Max Heat Dissipation |
6.48 BTU/h (no PD connected)
252.34 BTU/h (with 67 W PD connected) |
Software |
Transmission Method |
Store-And-Forward |
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Others |
Certification |
FCC, CE, RoHS |
Environment |
Operating Temperature: 0–40℃
Storage Temperature: -40–70℃
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 12 tháng.
