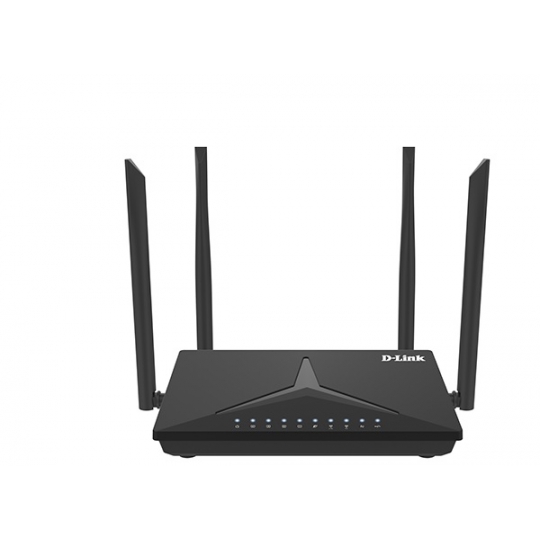

- The DIR-825M AC1200 MU-MIMO Wi-Fi Gigabit Router is a powerful wireless networking solution designed for Small Offi ce/Home Offi ce (SOHO) environments. By combining high-speed 802.11ac Wi-Fi with dual-band technology and Gigabit Ethernet ports, the DIR-825M provides a seamless networking experience with a high degree of convenience and fl exibility for SOHOs. The DIR-825M’s SOHO-class advanced security features keep data safe from unwanted network intruders. This together with the increased range and reliability of Wireless AC technology, helps provide a safe and secure network for devices further into your home or offi ce
Features
- High-Speed Connectivity
+ 802.11ac MU-MIMO wireless delivers blazing fast wireless connectivity with increased range and reliability
+ 10/100/1000 Gigabit Ethernet WAN port for fast paced Internet access
+ Four 10/100/1000 Gigabit Ethernet LAN ports give you high-speed wired connectivity
+ USB 2.0 for local network sharing
+ Mesh Ready
- Secure Wireless Connection
+ The Latest 128-bit Personal/192-bit Enterprise Wi-Fi Encryption
- Flexible Bandwidth
+ Concurrent dual-band wireless for connections up to 1200 Mbps
+ QoS engine to prioritize important traffi c and deliver uninterrupted bandwidth
- Setup and Management
+ Web browser-based setup and confi guration
+ Multiple Operating Modes Router/Access Point/Repeater/WISP Repeater/Wi-Fi Client
+ Intuitive setup wizard to guide you through the confi guration process
+ Firewall and access control options to prevent attacks and restrict access to your network
Technical Specifications
Hardware |
Device Interface |
1x 10/100/1000 WAN Ethernet
4x 10/100/1000 LAN Ethernet
1x USB 2.0 |
LEDs |
Power
Internet
4 LAN LEDs
USB
2.4GHz WLAN
5GHz WLAN
WPS |
Buttons |
• POWER button to power on/power off
• WPS button to set up wireless connection
• RESET button to restore factory default settings |
Antenna |
• 2x 5dBi 2.4GHz External Antennas
• 2x 5dBi 5GHz External Antennas |
Power connector |
• Power input connector (DC) |
CPU frequency |
• Single core 1GHz |
Software |
WAN connection types |
• PPPoE
• PPPoE Dual Stack
• Static IP
• Dynamic IP
• PPPoE + Static IP (PPPoE Dual Access)
• PPPoE + Dynamic IP (PPPoE Dual Access) |
Network functions |
• DHCP server/client
• Dynamic DNS
• Static routing |
Firewall functions |
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• URL filter
• MAC filter
• IP filtering
• Port filtering
• DMZ and Port forwarding(Virtual server)
• NAPT and ALG
• Denial of Service (DoS) protection |
VPN |
• PPTP/L2TP/GRE
• IPSec/PPTP/L2TP pass-through |
Management |
• Firmware update via web-based interface
• Saving/restoring configuration to/from file
• Access settings through WEB GUI
• Automatic NTP Date/time from Internet Time Server
• TR-069 remote management
• Logs and statistics |
Wireless Module Parameters |
Standards |
• IEEE 802.11 a/b/g/n/ac |
Frequency range |
• 11N: 2.4~2.4835GHz
• 11AC: 5.150~5.825GHZ |
Wireless connection security |
• The Latest 128-bit Personal/192-bit Enterprise Wi-Fi Encryption
• МАС filter
• WPS (PBC/PIN) |
Advanced functions |
• Wireless Client Mode
• Wireless AP Mode
• Wireless Repeater Mode
• WISP Mode
• Mesh Ready
• Multiple SSID’s
• Wireless Schedule
• FTP Server |
Transfer rate |
• HT20: up to 144 Mbps
• HT40: up to 300 Mbps
• VHT80: up to 867Mbps |
Software |
Modulation schemes |
• OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• DSSS = DBPSK, DQPSK, CCK |
Physical Parameters |
Dimensions (L x W x H) |
197 x 133.86 x 44.26 mm |
Operating Environment |
Power |
Output: 12V DC, 1A |
Temperature |
Operating: from 0 to 40 °C
Storage: from -20 to 90 °C |
Humidity |
Operating: from 5% to 95% (non-condensing) |
- Bảo hành: 24 tháng.
