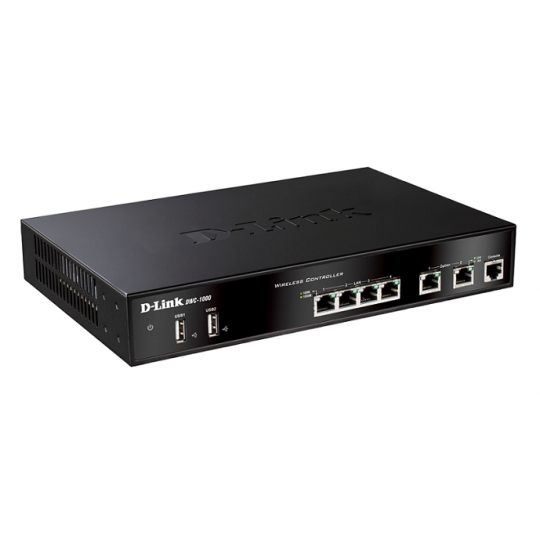

Bộ điều khiển không dây D-Link DWC-1000

-       Hỗ trợ cổng kết nối: 2 x USB 2.0, RJ45, 4 x Gigabit LAN.

-       Hỗ trợ bảo mật: WEP, Dynamic WEP, WPA Personal/Enterprise, WPA2 Personal/Enterprise.

-       Nguồn điện: 12VDC/ 2.5A.

-       Công suất tiêu thụ tối đa: 19.3W.

-       Kích thước: 280 x 180 x 44 mm.

-       Trọng lượng: 1.7 kg.

Interfaces

-       4 x Gigabit LAN ports.

-       2 x Gigabit option ports.

-       2 x USB 2.0 ports.

-       1 x Console (RJ45) port.

Capacity and performance

-       Default/maximum APs per unit: 6/12.

-       Default/maximum APs when using a cluster of 4 x DWC-1000: 24/48.

-       Concurrent Captive Portal authentication users: 512.

-       Dedicated IPSec VPN tunnels: 70.

-       Dedicated PPTP/L2TP VPN tunnels: 25.

-       Dedicated SSL VPN tunnels: 20.

AP discovery & control

-       Layer 2.

-       Layer 3.

AP monitoring

-       Managed AP.

-       Rogue AP.

-       Authentication fail AP.

-       Standalone AP.

Client monitoring

-       Authenticated client.

-       Rogue client.

-       Authentication fail client.

-       Ad-hoc client.

Centralised management

-       RF channel pattern.

-       RF power output.

-       Security policy.

Roaming

-       Fast roaming.

-       Intra/inter-controlling roaming.

-       Intra/inter-subnet roaming.

Wireless security

-       WEP.

-       Dynamic WEP.

-       WPA Personal/Enterprise.

-       WPA2 Personal/Enterprise.

LAN security

-       802.1x port-based access control.

-       Guest VLAN.

Wireless Intrusion Detection & Prevention System (WIDS)

-       Rogue/Valid AP classification.

-       Rogue AP mitigation.

Authentication

-       Captive portal.

-       Guest management.

-       MAC authentication.

VLAN

-       VLAN group: Up to 255 entries.

-       802.1q VLAN.

-       Subnet-based VLAN.

-       Port-based VLAN.

Firewall system2

-       Policy: 100 rules per feature, up to 600 rules total.

-       Dynamic routing: RIPv1, RIPv2.

-       Dynamic DNS.

-       NAT/PAT.

-       Web content filtering (Static URL/Keywords).

Networking2

-       Route failover.

-       Outbound load balancing.

Virtual Private Network (VPN) 2

-       Encryption: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL.

-       IPSec NAT Traversal.

-       Dead Peer Detection.

-       IP Encapsulating Security Payload (ESP).

-       IP Authentication Header (AH).
