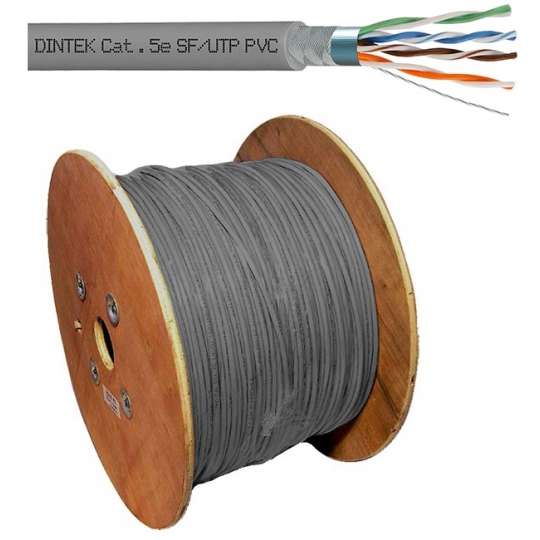

Cáp mạng Dintek CAT.5E S-FTP (1105-03001)

-    CAT.5E S-FTP Dintek 4 đôi, bọc nhôm chống nhiễu cho 4 đôi cáp và bọc lưới đồng ở ngoài, 305m/cuộn.

Application:

-       Voice

-       T1

-       ISDN

-       10Base T(IEEE 802.3)

-       Fast Ethernet(IEEE802.3u)

-       100Vg-AnyLAN(IEEE 802.12)

-       Token Ring(IEEE 802.5)

-       TP-PMD(ANSI X3T9.5)

-       100Base-T Ethernet (IEEE 802.5)

-       155/622Mbps ATM

-       1000Base-T

-       550MHz Broadband video

Industry Standard:

-       UL, ETL Verified

-       TIA/EIA 568B.2

-       ISO/IEC 11801

-       EN 50173

Cable Data:

-       No. of Pairs: 4

-       Jacket Color: Gray

-       Insulation Thickness: 0.2~0.3mm

-       Nom.O.D.: 6.2±0.2mm

-       Flame Rating: CM

-       Package: Reel, 305m(1,000ft)/ box

Product  Electrical Characteristics:

-       Impedance: 100±15 ohms

-       DC Resistance, max. ohms/100m: 9.38

-       DC Resistance, max. Unbalance of a pair: 5%max

-       Capacitance Unbalance(Pair to Ground):

-       330pf/ 100m max.

-       Propagation Delay Skew: 45nS/100m max.

Sản xuất tại Taiwan
