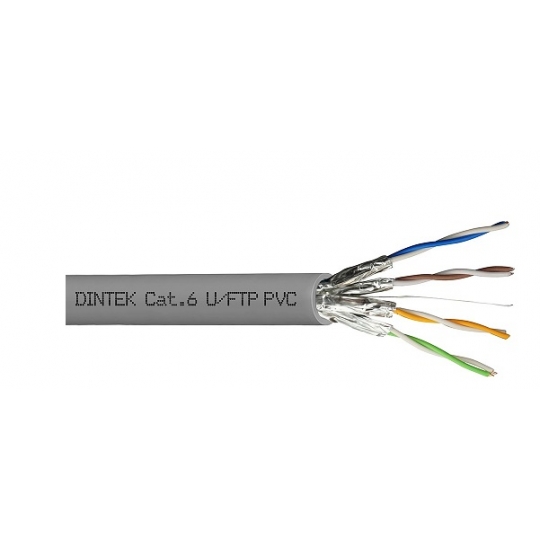

Cáp mạng Dintek CAT.6 S/FTP (1107-04009, 305 mét/cuộn)

Cáp mạng Dintek CAT.6 S/FTP (1107-04009, 305 mét/cuộn)

Part Number: 1107-04009

- Cáp mạng CAT.6 S/FTP Dintek 4-pairs, 23AWG, cuộn 305m trên rulo nhựa.

- Bọc nhôm chống nhiễu từng đôi cáp, bọc thêm lưới đồng ở ngoài.

Features

- Capable of handling the latest versions of Power over Ethernet

- Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG

- PVC jacketed 4 pair telecommunications cable

- Successful transmission at 500Mhz up to a length of 70Mtrs

- EZI-Pull 305Mtr Reel for trouble free installation

- Foil wraps act to prevent crosstalk between twisted pairs

- Braided shield helps prevent EMI/RFI & AXT from entering cable

Application

- Horizontal and backbone cable

- 1000BASE-TX Gigabit Ethernet/1000BASE-T Gigabit Ethernet

- 100BASE-TX Fast Ethernet/10BASE-TX Ethernet

- 100 Mbps TP-PMD/100VG-AnyLAN

- Broadband Video/Voice/T1/ISDN

- 10Gbit (500Mhz) Transmission up to length of 70Mtrs

Standards Conformance

- Performance - ANSI/TIA 568.2-D Cat.6/ISO/IEC 11801

- Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-5-1

- PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)

- Environmental - Conforms to RoHS and REACH Directives

- Flame testing - EN 60332-1-2

Independent Certification

- ETL Certification according to ANSI/TIA-568.2-D Cat.6

- UL Cable Fire Rating - CM as per UL 444
