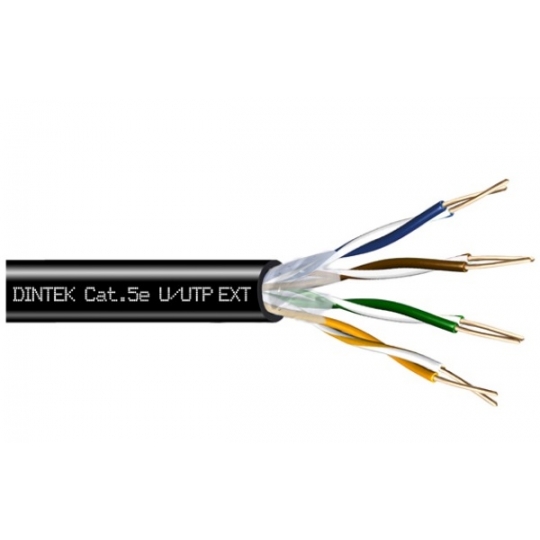

Cáp mạng ngoài trời có gel Dintek CAT.5e (1101-03024)
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 24AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | HDPE |
| Thickness | 0.245mm |
| Diameter | 1.03mm ± 0.05mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | None |
| Jacket | |
| Material | Polyethylene |
| Thickness | 0.6 mm |
| Diameter | 6.0mm ± 0.2mm |
| Color | Black |
| CPR Reaction To Fire | Fca: according to EN 13501-6 |
| Foil Shield | None |
| Braided Shield | None |
| Water Blocking Compound | Gel Filled |
| Jacket Physical Ranges | |
| Min. Bending Radius | Min. 8 x Cable Diameter |
| Max. Pulling Tension | 10Kg / 25 lbs |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +60°C |
| Electrical | |
| Conductor Resistance | Max. 9.38Ω/100m at 20°C |
| DC Resistance Unbalance | Max. 5% at 20°C |
| Pair-to-Ground Capacitance Unbalance | Max. 3300 pF/km at 1 kHz |
| Dielectric Strength of Insulation | DC 0.5KV for 1 min |
| Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at 20°C |
| Mutual Capacitance | Max. 5.6 nF/100m at 1 kHz |
| Impedance 1 ~ 100Mhz | 100Ω ± 15% |
| Nominal Velocity Of Propagation | 69% |
