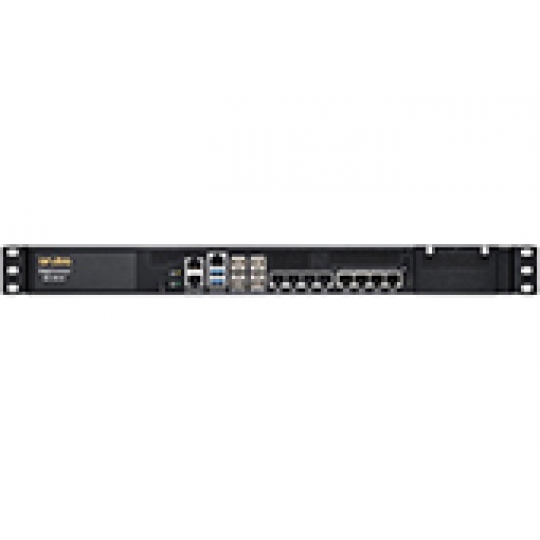

HP Aruba EC-M-H 8x RJ45 10/100/1000 4x SFP+ 1/10G SD-WAN Gateway

 The Aruba EdgeConnect Enterprise EC-M-H is a 1U rackmountable hub gateway platform that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/LTE/5G and internet-based hybrid WAN transport services and a control plane that is automated and secured by the Aruba WAN Orchestrator centralized management software providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications. Key features of Aruba EdgeConnect Enterprise EC-M-H include high-availability through power supply and storage redundancy, 8 x 1GbE RJ45 ports along with 4 x 1/10Gbps Short Reach (SR) or Long Reach (LR) fiber optical ports, making it an ideal platform for Data Center and large hub environments with typical WAN bandwidth from 50Mbps to 5Gbps.

- Typical Deployment: Head Office/DC Large Hub.

- WAN bandwidth capacity (all features + encryption): 50Mbps to 5Gbps (bidirectional).

- Simultaneous Connections: 2.000.000

- Recommended Boost up to: 1Gbps.

- LAN/WAN ethernet: 8 x 10/100/1000 (4 LAN/4 WAN) as per IEEE 802.3i, 802.3u, 802.3ab, 802.1Q and 4 x 1/10Gbps SFP+ optical interfaces that can support pluggable optics.

- Management: 2 x 10/100/1000; Console port.

- AC Requirement: 153W/ 522 BTU.

- Power Adapter: 1+1 Redundant.

- Weight: 8.2kg.

- Dimensions (H x W x D): 42.9 x 436.9 x 419.1 mm.

- Bảo hành: 12 tháng.
