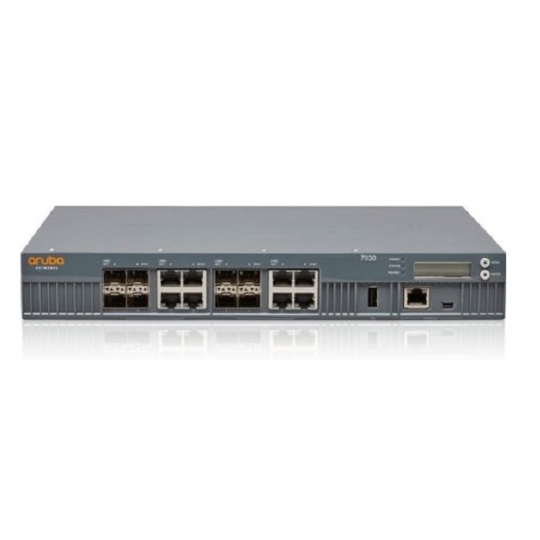

- Aruba 7030 (RW) supports 8 ports Dual Pers 10/100/1000BASE-T/1GBASE-X SFP, 64 AP and 4K Clients Controller.
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built-in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
Performance and Capacity |
Maximum campus or remote AP licenses |
64 AP |
Maximum concurrent users/devices |
4096 users/devices |
Maximum VLANs |
4096 VLANs |
Active firewall sessions |
65536 |
Concurrent GRE tunnels |
1024 |
Concurrent IPsec sessions |
4096 |
Concurrent SSL sessions |
4096 |
Concurrent Tunneled Ports |
2048 Gbps |
Firewall throughput (Gbps) |
8 Gbps |
Wired Bridged Throughput (Gbps) |
8 Gbps |
Encrypted throughput 3DES (Gbps) |
2.4 Gbps |
Encrypted throughput AES-CBC-256 (Gbps) |
2.6 Gbps |
Encrypted throughput AES-CCM (Gbps) |
4.0 Gbps |
Encrypted throughput AES-GCM-256 (Gbps) |
3.4 Gbps |
Interfaces and Indicators |
Form factor/footprint |
1xRU |
10/100/1000BASE-T |
8 (Combo) |
1000BASE-X |
USB 2.0 |
1 |
Management/status LEDs |
Yes |
LINK/ACT and status LEDs |
Yes |
LCD panel and navigation buttons |
Yes |
Console port |
mini USB, RJ-45 |
Physical |
Dimensions (H x W x D) |
4.4 x 30.5 x 21.1 cm |
Weight |
2.06 kg |
Environmental Range |
Operating temperature |
0° C to 40° C |
Storage temperature |
-40° C to 70° C |
Maximum power consumption |
55W (with PoE) |
Power Source |
internal power supply |
- Bảo hành: 12 tháng.
