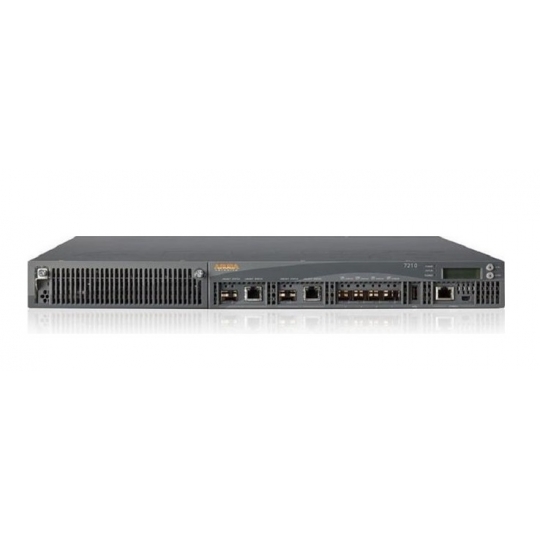

- Aruba 7210 (RW) 4p 10GBase-X (SFP+) 2p Dual Pers (10/100/1000BASE-T or SFP) Controller (Supports up to 512 APs and 16K Client).
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
Performance and Capacity |
Maximum campus or remote AP licenses |
512 AP |
Maximum concurrent users/devices |
16384 users/devices |
Maximum VLANs |
4096 VLANs |
Active firewall sessions |
2015291 |
Concurrent GRE tunnels |
8192 |
Concurrent IPsec sessions |
16384 |
Concurrent SSL sessions |
8192 |
Concurrent Tunneled Ports |
8192 |
Firewall throughput (Gbps) |
20 Gbps |
Wired Bridged Throughput (Gbps) |
20 Gbps |
Encrypted throughput 3DES (Gbps) |
7 Gbps |
Encrypted throughput AES-CBC-256 (Gbps) |
7 Gbps |
Encrypted throughput AES-CCM (Gbps) |
6 Gbps |
Encrypted throughput AES-GCM-256 (Gbps) |
7 Gbps |
Interfaces and Indicators |
Form factor/footprint |
1xRU |
10/100/1000BASE-T |
2xCombo |
1000BASE-X |
10G Ports (10G or 1G supported) |
4xSFP+ |
USB 2.0 |
1 |
Management/status LEDs |
Yes |
LINK/ACT and status LEDs |
Yes |
LCD panel and navigation buttons |
Yes |
Console port |
mini USB, RJ-45 |
Physical |
Dimensions (H x W x D) |
4.4 x 44.5 x 44.5 cm |
Weight |
7.45 kg |
Environmental Range |
Operating temperature |
0° C to 40° C |
Storage temperature |
-40° C to 70° C |
Maximum power consumption |
110W (with PoE) |
Power Source |
350-watt AC or DC power supply |
- Bảo hành: 12 tháng.
