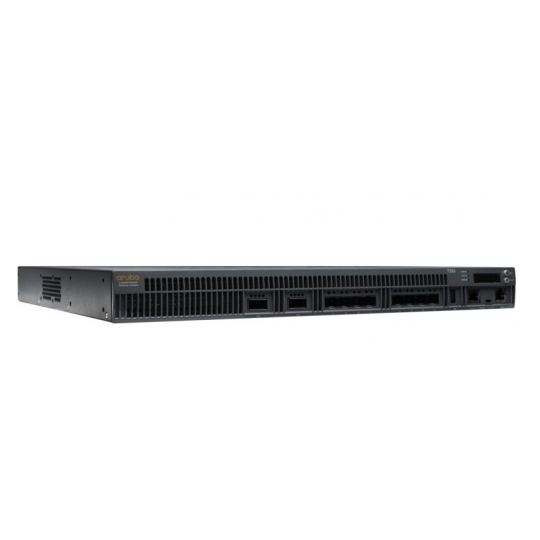

- Aruba 7280 (RW) Controller supports 2 QSFP+ Ports, 8 SFP+ Ports, Extended Memory with 16G SDRAM.
(Supports up to 2K Aps and 32K Client).
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
Performance and Capacity |
Maximum campus or remote AP licenses |
2048 AP |
Maximum concurrent users/devices |
32768 users/devices |
Maximum VLANs |
4096 VLANs |
Active firewall sessions |
2015291 |
Concurrent GRE tunnels |
32768 |
Concurrent IPsec sessions |
32768 |
Concurrent SSL sessions |
8192 |
Concurrent Tunneled Ports |
16384 |
Firewall throughput (Gbps) |
100 Gbps |
Wired Bridged Throughput (Gbps) |
100 Gbps |
Encrypted throughput 3DES (Gbps) |
57 Gbps |
Encrypted throughput AES-CBC-256 (Gbps) |
46 Gbps |
Encrypted throughput AES-CCM (Gbps) |
79 Gbps |
Encrypted throughput AES-GCM-256 (Gbps) |
80 Gbps |
Interfaces and Indicators |
Form factor/footprint |
1xRU |
10G Ports (10G or 1G supported) |
8xSFP+ |
40G Ports |
2xQSFP+ |
USB 2.0 |
1 |
Management/status LEDs |
Yes |
LINK/ACT and status LEDs |
Yes |
LCD panel and navigation buttons |
Yes |
Console port |
mini USB, RJ-45 |
Out-of-band management port |
Yes |
Physical |
Dimensions (H x W x D) |
4.4 x 44.2 x 40.1 cm |
Weight |
7.9 kg |
Environmental Range |
Operating temperature |
0° C to 40° C |
Storage temperature |
-40° C to 70° C |
Maximum power consumption |
240W (with PoE) |
Power Source |
550-watt AC or DC power supply |
- Bảo hành: 12 tháng.
