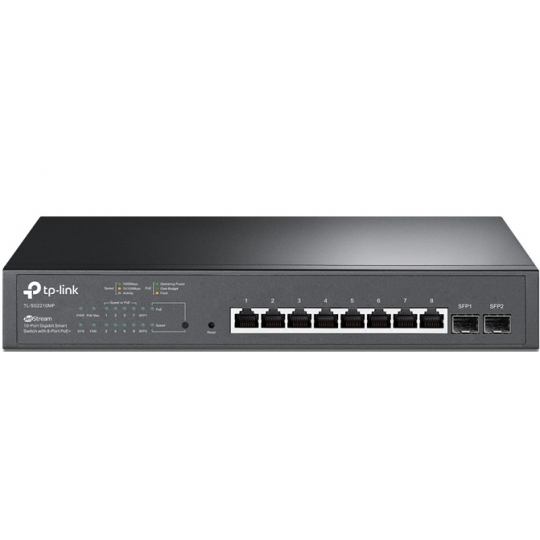

- 150W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150W.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Đặc tính kỹ thuật
HARDWARE FEATURES |
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface |
8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
2× 100/1000 Mbps SFP Slots |
Fan Quantity |
1 |
Physical Security Lock |
Yes |
PoE+ Ports (RJ45) |
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 150 W |
Dimensions ( W x D x H ) |
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
Mounting |
Rack Mountable |
Max Power Consumption |
12.2 W (110 V / 60 Hz with no PD connected)
173.9 W (110 V / 60 Hz with 150 W PD connected) |
Max Heat Dissipation |
41.63 BTU/h (with no PD connected)
539.35 BTU/h (with 150 W PD connected) |
PERFORMANCE |
Switching Capacity |
20 Gbps |
Packet Forwarding Rate |
14.9 Mpps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
Quality of Service |
802.1p CoS/ DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Actions for flows
Storm Control |
L2 and L2+ Features |
DHCP Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED |
L2 Features |
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol(DLDP) |
L2 Multicast |
512 IPv4,IPv6 shared multicast groups
IGMP Snooping
MLD Snooping
Multicast VLAN Registration
Multicast Filtering |
IPv6 Support |
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery(MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications |
VLAN |
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN |
Access Control List |
Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding |
Security |
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Gurad
IPv6 Source Gurad
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control |
- Bảo hành: 36 tháng.
