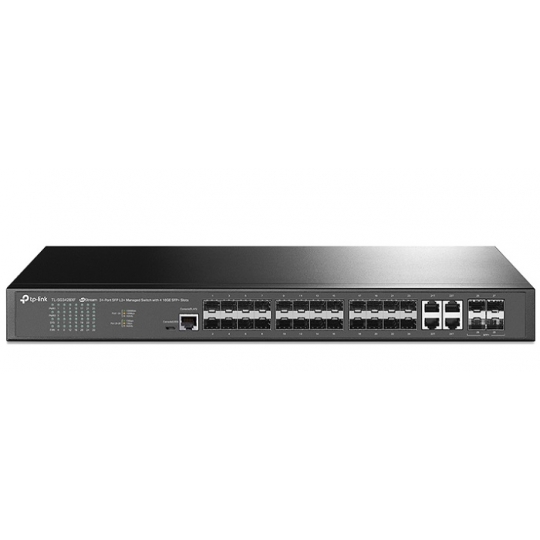

- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Gigabit Fiber Speeds: 20× gigabit SFP ports and 4× gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Đặc tính kỹ thuật
HARDWARE FEATURES |
Interface |
• 20× Gigabit SFP Ports
• 4× Gigabit SFP/RJ45 Combo Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port |
Fan Quantity |
1 Fan |
Power Supply |
Dual Reduant Power Supplies
100-240 V AC~50/60 Hz |
Dimensions ( W x D x H ) |
17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
Mounting |
Rack Mountable |
Max Power Consumption |
35.7 W (110 V/60 Hz) |
Max Heat Dissipation |
121.81 BTU/hr (110 V/60 Hz) |
PERFORMANCE |
Switching Capacity |
128 Gbps |
Packet Forwarding Rate |
95.23 Mpps |
MAC Address Table |
16 K |
Packet Buffer Memory |
12 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
Quality of Service |
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
• Bandwidth Control
• Smoother Performance
• Action for Flows |
L2 and L2+ Features |
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• Flow Control
• Mirroring |
L2 Multicast |
• IGMP Snooping
• IGMP Authentication
• MLD Snooping
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile |
VLAN |
• VLAN Group: Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
• Voice VLAN |
Access Control List |
• Time-based ACL
• MAC ACL
• IP ACL
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
• ACL apply to Port/VLAN |
Security |
• IP-MAC-Port Binding
• IPv6-MAC-Port Binding
• DoS Defend
• Static/Dynamic Port Security
• Broadcast/Multicast/Unicast Storm Control
• 802.1X
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control |
L3 Features |
• 16 IPv4/IPv6 Interfaces
• Static Routing: 48 static routes
• Static ARP: 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay |
Advanced Features |
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule |
- Bảo hành: 36 tháng.
