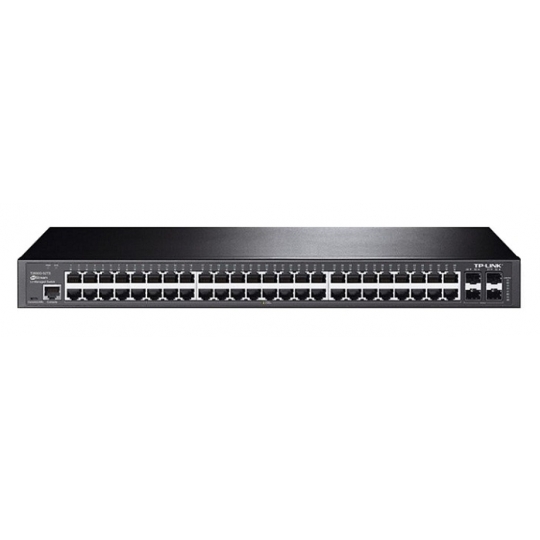

- 48 cổng RJ45 10/100/100Mbps + 4 slot 1000Mbps SFP.
- QoS L2/ L3/ L4 và ICMP Snooping tối ưu hóa cho các ứng dụng âm thanh và video.
- Với SNMP, RMON, WEB/ CLI, mang lại các tính năng quản trị đa dạng.
- Địa chỉ MAC: 16K.
- Bộ nhớ gói dữ liệu đệm: 1.5MB.
- Nguồn điện: 100 - 240V, 50/60Hz.
- Công suất tiêu thụ: 33.52W.
- Kích thước: 440 x 220 x 44 mm.
- Trọng lượng: 4.5kg.
Đặc tính kỹ thuật
Interfaces
|
48 10/100/1000Mbps RJ45
|
4 1000Mbps SFP
|
Console Port
|
1 RJ45 Console Port
|
1 Micro-USB Console Port
|
L2 Features
|
Link Aggregation: Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group
|
Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
|
Loopback Detection
|
Flow Control: 802.3x Flow Control, HOL Blocking Prevention
|
Port Mirroring: One-to-One, Many-to-One, Flow-Based, Tx/Rx/Both
|
L2 Multicast
|
Supports 1000 (IPv4, IPv6) IGMP groups
|
IGMP Snooping: IGMP v1/v2/v3 Snooping, IGMP Fast Leave, Multicast VLAN, IGMP Snooping Querier, IGMP Authentication, Limited IP Multicast (256 proles and 16 entries per prole), Static Multicast
|
MLD Snooping: MLD v1/v2 Snooping, MLD Snooping Querier, Fast Leave, Limited IP Multicast (256 proles and 16 entries per prole), Static Multicast
|
L3 Features
|
16 IP Interfaces: Supports ipv4 interface, supports ipv6 interface
|
Proxy ARP
|
Static Routing: 48 static routes
|
VLAN
|
VLAN Group: Max. 4K VLAN Groups
|
802.1Q Tagged VLAN
|
MAC VLAN: 256 Groups
|
Protocol VLAN
|
Private VLAN
|
GVRP
|
VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
|
Voice VLAN
|
Qos
|
802.1p CoS/DSCP priority
|
8 priority queues
|
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
|
Bandwidth Control: Port/Flow based Rating Limiting
|
Smoother Performance
|
Actions for flows: Mirror (to supported interface), Redirect(to supported interface), Rate Limit, QoS Remark
|
ACL
|
Supports up to 300 entries (up to 600 by Access Template)
|
Time-based ACL
|
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, EtherType
|
Standard IP ACL: Source IP, Destination IP
|
Extended IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/ UDP Port, DSCP/IP TOS
|
Switching Capacity
|
104Gbps
|
Forwarding Rate
|
77.4Mpps
|
MAC Address Table
|
16K
|
Packet Buffer Memory
|
1.5MB
|
Jumbo Frame
|
9216 Bytes
|
Power Supply
|
100 - 240V, 50/60Hz
|
Maximum Power Consumption
|
33.52W (220V/50Hz)
|
Dimensions
|
440 x 220 x 44 mm
|
Weight
|
4.5kg
|
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
