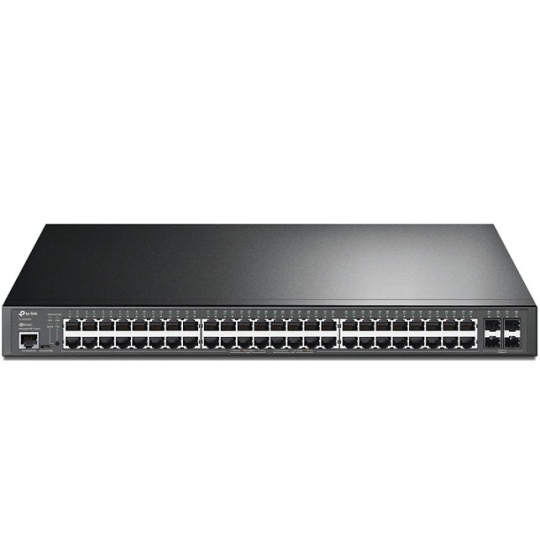

JetStream 52-Port Gigabit with 48-Port PoE+ Managed Switch TP-LINK TL-SG3452P
- 384W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384W.
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
- 384W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384W.
- Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Interface | 48× 10/100/1000 Mbps RJ45 Ports 4× Gigabit SFP Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 48 Ports, up to 30 W per port Power Budget: 384 W |
| Dimensions (W x D x H) | 440 × 330 × 44 mm |
| Mounting | Rack Mountable |
| Max Power Consumption | 52.5 W (no PD connected) 485.4 W (110 V/60 Hz) (with 384 W PD connected) |
| Max Heat Dissipation | 179.1 BTU/hr (110 V/60 Hz) (no PD connected) 1656.2 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.4 Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9K |
| SOFTWARE FEATURES | |
| Quality of Service | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling Bandwidth Control Smoother Performance Action for Flows |
| L2 and L2+ Features | Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring |
| L2 Multicast | Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication MLD Snooping MVR Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | VLAN Group 802.1Q Tagged VLAN MAC VLAN: 12 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Voice VLAN |
| Access Control List | Time-based ACL MAC ACL IP ACL Combined ACL Packet Content ACL IPv6 ACL Policy ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend Static/Dynamic Port Security Broadcast/Multicast/Unicast Storm Control 802.1X AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| IPv6 | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications |
| L3 Features | 16 IPv4/IPv6 Interfaces Static Routing Static ARP 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay |
| Management | Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning) |
- Bảo hành: 36 tháng.
