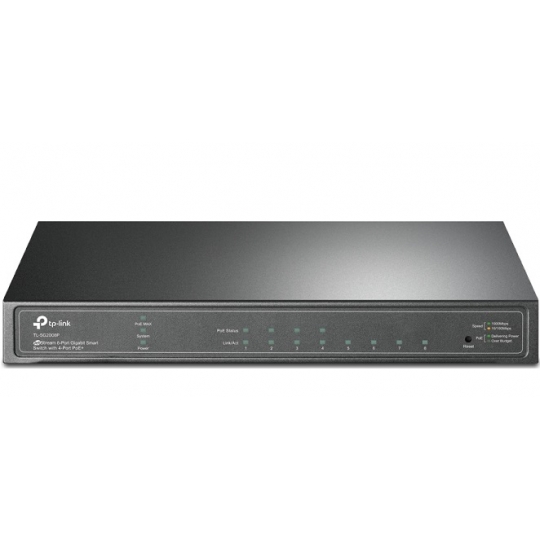

- 62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62W.
- Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Đặc tính kỹ thuật
HARDWARE FEATURES |
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
Interface |
8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX |
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
Fan Quantity |
Fanless |
Power Supply |
External Power Adapter (Output: 53.5 VDC/ 1.3 A) |
Power Consumption |
7.9 W (no power device connected)
79.2 W (with 62 W power devices connected) |
PoE Ports (RJ45) |
Standard: 802.3af/at compliant
PoE Ports: 4 Ports
Power Supply: 62 W |
Dimensions (W x D x H) |
209 x 126 x 26 mm |
PERFORMANCE |
Bandwidth/Backplane |
16 Gbps |
MAC Address Table |
8k |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
Quality of Service |
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control |
L2 and L2+ Features |
DHCP Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED |
L2 Multicast |
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
Limited IP Multicast (256 profiles and 16 entries per profile) |
IPv6 Support |
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications |
VLAN |
VLAN Group
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN |
Access Control List |
Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows |
Security |
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with
SSLv3/TLS 1.2
Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
IP/Port/MAC-based access control |
MANAGEMENT |
Omada App |
Yes |
Management Features |
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log |
- Bảo hành: 36 tháng.
