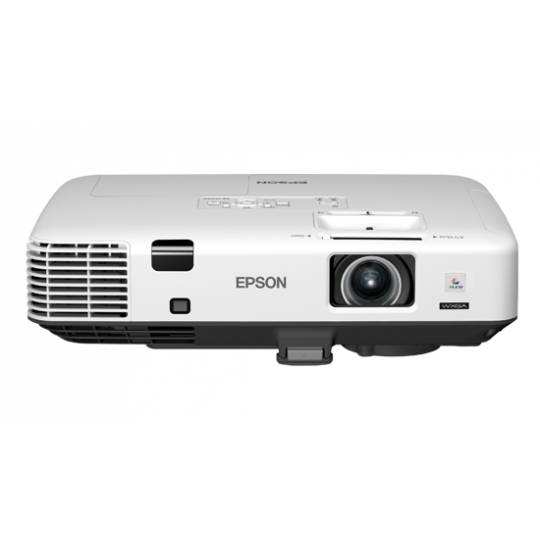

Máy chiếu EPSON EB-1935
- Công nghệ: 3LCD.
- Cường độ sáng: 4.200 Ansi Lumens.
- Độ phân giải thực: XGA (1024 x 768).
- Độ tương phản máy chiếu: 3.000:1
- Độ phóng to hình ảnh: 30 - 300 inch.
- Bóng đèn: 215W UHE, tuổi thọ có thể lên tới 5.000 giờ.
- Loa âm thanh: 10W.
- Chỉnh lệch hình: +/-30º dọc (chỉnh hiệu ứng hình thang).
- Tự động cân chỉnh chiều dọc hình ảnh.
- Khởi động trong 8 giây và tắt máy nhanh (Quick Start and Instant Off).
- Cổng USB type B 3 trong 1 trình chiếu hình ảnh, âm thanh và điều khiển từ xa.
- Nút A/V Mute: Tạm dừng trình chiếu, tiết kiệm điện năng.
- Hỗ trợ kết nối: 2 USB type A, USB type B, HDMI, RS232 control.
- Hỗ trợ kết nối Wifi (Chọn thêm).
- Ngõ vào Audio, Video.
- Kích thước: 271 x 377 x 93 mm.
- Trọng lượng: 3.8 kg.
Đặc tính kỹ thuật
Projection Technology
|
RGB liquid crystal shutter projection system (3LCD)
|
Size
|
0.63 inch with MLA
|
Native Resolution
|
XGA
|
Projection Lens
|
Type
|
Optical Zoom (Manual) / Focus (Manual)
|
F-Number
|
1.51 - 1.99
|
Focal Length
|
18.2mm - 29.2mm
|
Zoom Ratio
|
1.0 - 1.6
|
Throw Ratio
|
1.38 - 2.24 (Wide - Tele)
|
Lamp
|
Type
|
215W UHE
|
Life (Normal/Eco)
|
3,500 hours / 5,000 hours
|
Screen Size (Projected Distance)
|
Zoom: Wide
|
30 inch - 300 inch [0.84m - 8.4m]
|
Zoom: Tele
|
30 inch - 300 inch [1.36m -13.9m]
|
Standard Size
|
60 inch screen 1.69m - 2.75m
|
Brightness
|
Colour Light Output
|
4,200lm
|
White Light Output (Normal)
|
4,200lm/2,730lm
|
Contrast Ratio
|
3000:1
|
Internal Speaker(s)
|
Sound Output
|
10W Monaural
|
Keystone Correction
|
Vertical / Horizontal
|
±30º / ±30º
|
Auto Keystone Correction
|
Yes (Vertical only)
|
Connectivity
|
Analog Input
|
|
D-Sub 15 pin
|
2 (Blue)
|
Component
|
D-sub 15pin (Blue molding) x 2 (in common with Analog RGB connector)
|
Composite
|
RCA (Yellow) x 1
|
Digital Input
|
HDMI
|
1
|
Display Port
|
1
|
Output Terminal
|
D-Sub 15 pin
|
1 (Black)
|
Audio Input
|
Stereo Mini Jack
|
2
|
Audio Output
|
|
Stereo Mini Jack
|
1
|
USB Interface
|
USB Type A
|
2 (for USB memory / ELPDC06 Document Camera)
|
USB Type B
|
1 (USB Display)
|
Control I/O
|
RS232C
|
D-sub 9pin x 1
|
Network
|
Wired Lan
|
RJ45 x 1 (10/100Mbps)
|
Wireless
|
Optional (ELPAP07)
|
Wireless Specifications
|
Supported Speed For Each Mode
|
IEEE 802.11b: 11 Mbps, IEEE 802.11g: 54 Mbps, IEEE 802.11n: 130 Mbps
|
Wireless LAN Security
|
