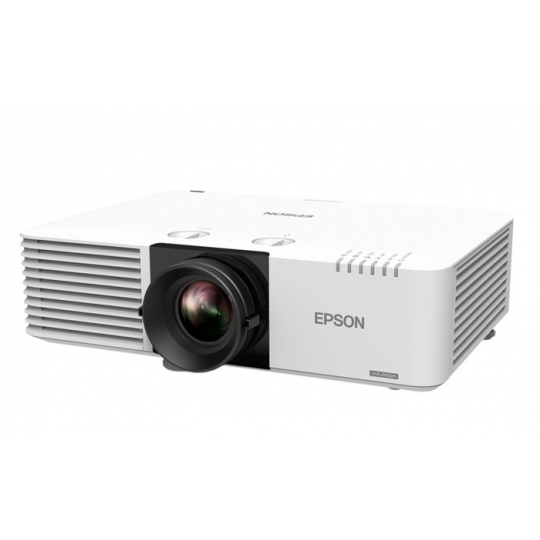

Máy chiếu EPSON EB-L730U
- Công nghệ: 3LCD.
- Cường độ sáng trắng: 7,000 lm.
- Cường độ sáng màu: 7,000 lm.
- Độ phân giải thực: WUXGA (1920 x 1200).
- Độ tương phản: 2,500.000:1.
- Laser Diode, tuổi thọ 30,000 giờ (ECO).
- Kết nối: HDMI x2, HDBaseT, LAN RJ45, 5BNC, VGA in,VGA out, DVI-D, Video, Audio in x3, Audio out, RS-232, USB-A, USB-B.
- Wireless: (tùy chọn ELPAP11).
- Tích hợp công nghệ không dây Miracast.
- Loa âm thanh: 10W.
- Chiếu lệch góc: ±30° dọc và ±30° ngang.
- Lens Shift: ±50% dọc và ±20% ngang.
- Trình chiếu và quản lý hệ thống máy chiếu qua mạng LAN.
- Trình chiếu 360° không hạn chế không gian.
Đặc tính kỹ thuật
Model |
EB-L730U |
Projection System |
3LCD Technology, RGB liquid crystal shutter |
LCD Panel |
0,67 inch with C2 Fine |
Image |
Color Light Output |
7.000 Lumen- 4.900 Lumen (economy) |
White Light Output |
7.000 Lumen - 4.900 Lumen (economy) |
Resolution |
WUXGA |
Aspect Ratio |
16:9 |
Contrast Ratio |
Over 2.500.000 : 1 |
Light source |
Laser |
Laser Light source |
20.000 hours Durability High, 30.000 hours Durability Eco |
Keystone Correction |
Auto vertical: ± 30°, Manual horizontal ± 30° |
Colour Video Processing |
10 bits |
2D Vertical Refresh Rate |
192 Hz - 240 Hz |
Colour Reproduction |
Upto 1.07 billion colours |
Optical |
Throw Ratio |
1,35 - 2,20:1 |
Zoom |
Manual, Factor: 1 - 1,6 |
Projection Lens Zoom Ratio |
1,35 - 2,2 : 1 |
Lens |
Optical |
Lens Shift |
Manual - Vertical ± 50 %, horizontal ± 20 % |
Screen Size |
50 inches - 500 inches |
Projection Distance Wide |
1,4 m - 14,8 m |
Projection Distance Tele |
2,4 m - 23,8 m |
Projection Distance Wide/Tele |
1,44 m - 23,84 m |
Projection Lens F Number |
1,5 - 1,7 |
Projection Lens Focal Length |
20 mm - 31,8 mm |
Projection Lens Focus |
Manual |
Connectivity |
Interfaces |
USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/g 25GHz, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback |
Epson iProjection App |
Ad-Hoc / Infrastructure |
Network Protocol |
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
General |
Power consumption |
345W, 258W (economy), 0.3W (standby) |
Supply Voltage |
100 - 240 VAC, 50 - 60 Hz |
Dimensions |
440 x 339 x 136 mm (Width x Depth x Height) |
Weight |
8.4kg |
Noise Level |
Normal: 38 dB (A) - Economy: 27 dB (A) |
Supported Temperature |
Storage -10°C ~ 60°C |
Supported Humidity |
Operation 20% - 80%, Storage 10% - 90% |
Loudspeaker |
10W |
- Bảo hành: 36 tháng.
