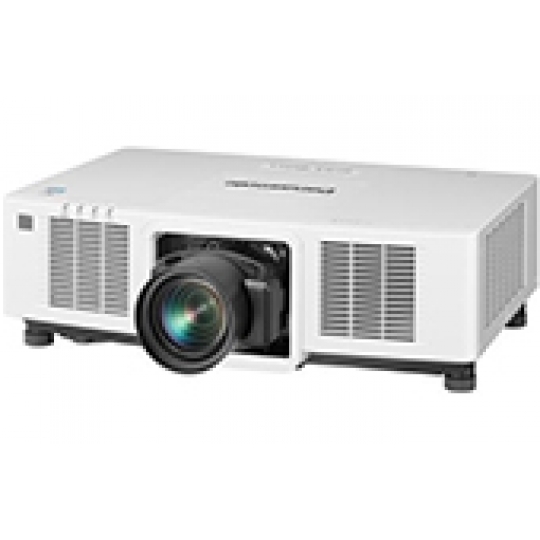

Máy chiếu Laser PANASONIC PT-MZ10K
- Công nghệ trình chiếu: LCD.
- Cường độ chiếu sáng: 10000 Lumens.
- Độ phân giải máy chiếu: 1920 x 1200 pixels (WUXGA).
- Độ tương phản: 3000000:1.
- Time until light output declines to 50%: 20,000 hours (NORMAL)/24,000 hours (ECO).
- Kích thước (WxHxD): 650 x 185 x 440 mm.
- Trọng lượng: 22.3Kg.
Đặc tính kỹ thuật
Projector type |
LCD projectors |
Light source |
Laser diodes |
Light output |
10,000 lm |
Time until light output declines to 50 % |
20,000 hours (NORMAL) / 24,000 hours (ECO) |
Resolution |
1920 x 1200 pixels |
Screen size |
1.78–25.4 m (70–1,000 in), 16:10 aspect ratio |
LENS |
Optional powered zoom lenses |
Keystone correction range |
Vertical: ±40°, Horizontal: ±15° |
Keystone correction range with optional ET-UK20 Upgrade Kit |
Vertical: ±40°, Horizontal: ±40° |
Power supply |
AC 100-240 V, 50/60 Hz |
Dimensions (W x H x D) (mm) |
650 x 185 x 440 mm (25 19/32˝ x 7 9/32˝x 17 5/16˝ ) (Without lens) (Not including protruding parts) |
LAN |
RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
DIGITAL LINK/LAN |
RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP, Deep Color) |
Contrast Ratio |
3,000,000:1 (Full On/Full Off) |
Center-to-corner zone ratio |
90% |
Filter |
Included (Estimated maintenance time: approx. 20,000 hours) |
Weight |
Approx. 22.3 kg (49.2 lbs) (TBD) |
DLP chip |
Panel size (mm) |
25.4 mm (1.0 in) diagonal (16:10 aspect ratio) |
Panel Display method |
Transparent LCD panel (x 3, R/G/B) |
Number of Pixels |
2,304,000 (1920 x 1200) pixels x 3, total of 6,912,000 pixels |
Installation |
Ceiling/floor, front/rear, free 360-degree installation |
Terminals |
SDI IN |
BNC x 1: 3G/HD/SD-SDI input |
SDI IN |
BNC x 1: 3G/HD/SD-SDI input |
HDMI IN |
HDMI 19-pin x 1 (Compatible with HDCP, Deep Color) |
DVI-D IN |
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
MULTI PROJECTOR SYNC IN |
BNC x 1 |
MULTI PROJECTOR SYNC OUT |
BNC x 1 |
SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
SERIAL OUT |
D-sub 9-pin (male) x 1 for link control |
REMOTE 1 OUT |
M3 stereo mini-jack x 1 |
REMOTE 2 IN |
D-sub 9-pin (female) x 1 for external control (parallel) |
REMOTE 1 IN |
M3 x 1 for wired remote control |
USB |
USB Connector (Type A) x 1 (Output 5 V/2 A) |
RGB In |
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng cho máy.
