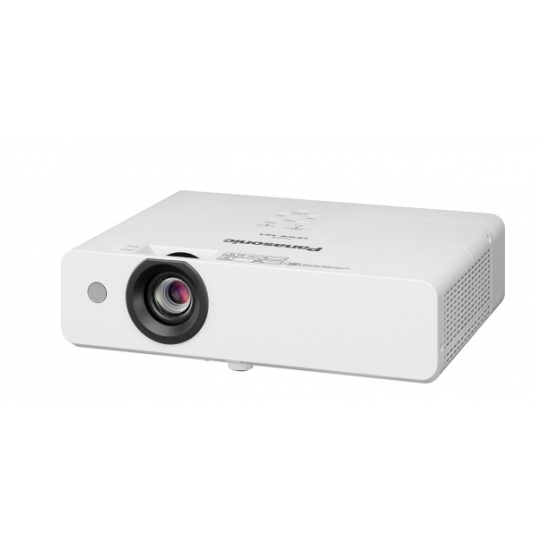

Máy chiếu PANASONIC PT-LB306
- Cường độ chiếu sáng: 3100 Lumens.
- Độ phân giải máy chiếu: 1024 x 768 (XGA).
- Độ tương phản: 16000:1.
- Bóng đèn: 230W x 1 lamp.
- Tuổi thọ bóng đèn: 20000 (Eco mode).
- Kích thước phóng to màn hình: 33 – 300 inch (0.76-7.62 m).
- Tỉ lệ khung hình: 4:3.
- Ống kính: Manual zoom 1.2x.
- Kích thước: 335 x 96 x 252 mm.
- Trọng lượng: 2.8kgs.
Thông số kỹ thuật
LCD Panel | Panel Size |
16.0 mm (0.63 in) diagonal (4:3 aspect ratio) |
LCD Panel | Number of pixels |
786,432 (1024 x 768 pixels) x 3 |
Light Source |
230 W x 1 lamp |
Light Output *2 |
3,100 lm |
Lamp replacement cycle*3 |
Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h |
Filter Replacement Cycle |
Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h |
Resolution |
1024 x 768 pixels |
Contrast Ratio*2 |
20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal) |
Screen size [diagonal] |
0.76–7.62 m (30–300 in), 4:3 aspect ratio |
Center-to-corner zone ratio*2 |
85% |
Lens |
Manual zoom (1.2x), manual focus lens, F = 2.1–2.25, f = 19.11–22.94 mm, throw ratio: 1.47–1.77:1 |
Keystone Correction Range |
Vertical: ±30° (Auto, Manual) |
Installation |
Ceiling/desk, front/rear |
Terminals | HDMI In |
HDMI 19-pin x 1 (Compatible withHDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies:48 kHz, 44.1 kHz, 32 kHz) |
Terminals | Computer 1 In |
D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC] |
Terminals | Video In |
Pin jack x 1 |
Terminals | Audio In 1 |
M3 (L,R) x 1 |
Terminals | Audio In 2 |
Pin jack x 2 (L,R) |
Terminals | Audio Out |
M3 (L,R) x 1 (Variable) |
Terminals | Serial In |
D-sub 9-pin (female) x 1 for external control (RS-232C compatible |
Terminals | USB B |
For service only |
Power Supply |
AC 100–240 V, 50/60 Hz |
Power Consumption |
300W |
Built in Speaker |
2W monaural |
Operation Noise*2 |
Normal: 38dB, Eco: 35dB, Quiet: 30dB |
Cabinet Materials |
Molded plastic |
Dimensions (W x H x D) |
335 x 96*5 x 252 mm |
Weight*6 |
Approx. 2.8 kg |
Operating Environment |
Operating temperature*7: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) ataltitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation) |
Terminals | Monitor Out |
D-sub HD 15-pin (female) x 1 [RGB/YPBPR] |
Note |
*1 Availability may vary by country or region. *2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *3 Lamp replacement cycle stated is maximum value, at which timebrightness will have decreased to 50 %. Usage environment affects lamp replacement cycle. *4 ET-WML100 Series and AJ-WM50 Series devices are both compatible with supported projectors in this series, and either can be used to enable the wireless network function. *5 With legs atshortest position. *6 Average value. May differ depending on the actual unit. *7 When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation of 1,400 m (4,593 ft) or less, if the ambient temperature exceeds 35 °C (95 °F), [LAMP POWER] will be switched to[ECO] automatically to protect the projector. When [LAMP POWER] is set to [NORMAL] and the projector is operated at an elevation between 1,400 m (4,593 ft) and 2,700 m (8,858 ft), if the ambient temperature exceeds 30°C (86°F), [LAMP POWER] will be switched to [ECO]automatically to protect the projector. *8 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images andsound are being transmitted. *9 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).' |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng cho thân máy, 12 tháng hoặc 1000 giờ cho bóng đèn tùy theo điều kiện nào đến trước.
