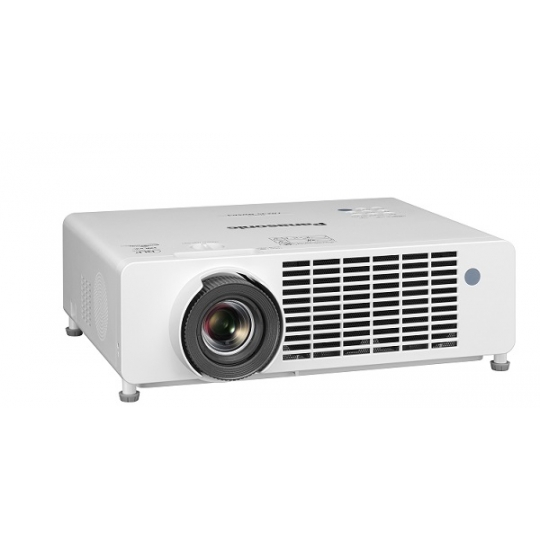

Máy chiếu PANASONIC PT-LRZ35
- Máy chiếu LED công nghệ 1 chip DLP.
- Độ sáng: 3.500 Lumens.
- Độ phân giải: 1920 × 1200 pixels (WUXGA).
- Độ tương phản: 30000:1.
- Công nghệ chiếu sáng: Light Emitting Diode.
- Tuổi thọ đèn chiếu sáng: 20.000 giờ.
- Kích thước mànchiếu: 1.02–7.62 m (40–300 in), tỷ lệ 16:10.
- Lens shift: V: +50%; H: +40%.
- Zoom quang: 1.3x.
- Cổng kết nối: HDMI x 2, VGA x 2, Video, Audio, Serial, LAN, Micro USB, USB, VGA out.
- Cống suất loa: 10W.
- Kích thước: 375 x 124x 314 mm.
- Trọng lượng: 6.7kg.
- Hệ thống đèn LED cho phép hoạt động liên tục 24/7.
- Điều khiển máy chiếu qua mạng LAN.
- Xoay 360 độ thích hợp lắp đặt mọi góc độ.
Đặc tính kỹ thuật
Model |
PT-LRZ35 |
Projector type |
1-Chip DLP projector |
Panel size |
17.0 mm (0.67 in) diagonal, 16:10 aspect ratio |
Display method |
DLP chip x 1, DLP projection system |
Number of pixels |
2,304,000 (1920 x 1200) pixels |
Light source |
Light Emitting Diode |
Light output |
3,500 lm |
Time until light output declines to 50 % |
20,000 hours |
Resolution |
1920 x 1200 pixels |
Contrast ratio |
30,000:1 (When [Light power] is set to [Normal] and [Picture Mode] is set to [Dynamic]) |
Screen size [diagonal] |
1.02–7.62 m (40–300 in), 16:10 aspect ratio |
Center-to-corner zone ratio |
90% |
Lens |
1.3x manual zoom (throw ratio: 1.28–1.69:1) |
Lens shift (From the origin point of the lens mounter) |
Vertical: +50 %, +40 % |
Keystone correction range |
Vertical: ±30 ° |
Installation |
Ceiling/floor, front/rear, 2-axis 360-degree installation |
Terminals |
HDMI IN 1/HDMI IN 2: HDMI 19-pin x 2 (HDCP and Deep Color compatible), CEC supported |
COMPUTER 1 IN: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
COMPUTER 2 IN: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
COMPUTER OUT: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
VIDEO IN: Pin jack x 1 |
AUDIO 1 IN/AUDIO 2 IN: M3 stereo mini-jack x 2 |
ARIABLE AUDIO OUT: M3 stereo mini-jack x 1 |
SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
LAN: RJ-45 x 1 for network control, 10Base-T, 100Base-T, compatible with PJ Link (Class 1) |
Micro USB: x 1 (for service use) |
DC OUT: USB Connector (Type A) x 1 (for power supply, DC 5 V/2 A) |
Power supply |
AC 100–240 V, 50/60 Hz |
Power consumption |
NORMAL: 420 W, ECO: 255 W, QUIET: 196 W |
Built-in speaker |
10W monaural |
Cabinet materials |
Molded plastic |
Operation noise |
NORMAL: 35 dB, ECO: 27 dB, QUIET: 24 dB |
Dimensions (W × H × D) |
375 x 124 x 314 mm (including protruding parts) |
Weight |
Approx. 6.7 kg (14.8 lbs) |
Operating environment |
Operating temperature: 0–40 °C (32–104 °F); Operating humidity: 20–80 % (no condensation) |
Applicable software |
Multi Monitoring & Control Software, Early Warning Software |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng cho máy, 3 tháng hoặc 500 giờ cho bóng đèn chiếu tùy theo điều kiện nào đến trước.
