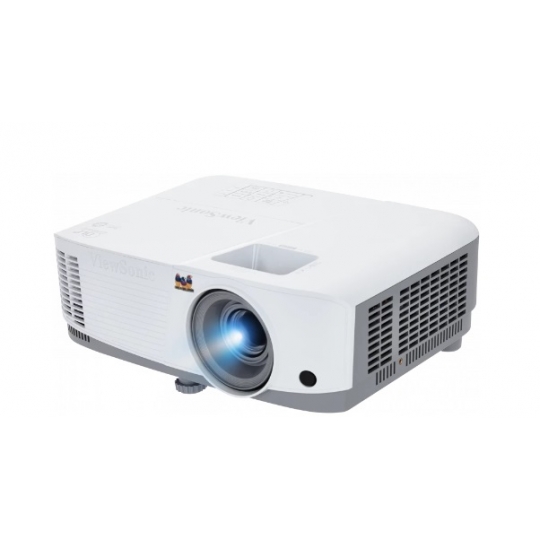

Máy chiếu ViewSonic PA503SP
- Công nghệ SuperColor.
- Độ phân giải thực: 800x600.
- Cường độ sáng: 3800 (ANSI Lumens).
- Độ tương phản: 22000:1.
- Tuổi thọ bóng đèn: 5000 hour (Normal Mode); 15000 hour (SuperEco Mode).
- Optical Zoom: 1.1x.
- Digital Zoom: 0.8x-2.0x.
- Kích thước (W x D x H): 294 x 218 x 110 mm.
- Trọng lượng : 2.2kg.
Đặc tính kỹ thuật
Native Resolution |
800 x 600 |
DMD Type |
DC3 |
Brightness |
3800 (ANSI Lumens) |
Contrast Ratio with SuperEco Mode |
22000:1 |
Display Color |
1.07 Billion Colors |
Light Source Type |
Lamp |
Light Source Life (hours) with Normal Mode |
5000 |
Light Source Life (hours) with SuperEco Mode |
15000 |
Lamp Watt |
190W |
Lens |
F=2.56-2.68, f=22-24.1mm |
Projection Offset |
120%+/-5% |
Throw Ratio |
1.96-2.15 |
Optical Zoom |
1.1x |
Digital Zoom |
0.8x-2.0x |
Image Size |
30 inch - 300 inch |
Throw Distance |
1.19m-13.11m(100'@3.98m) |
Keystone |
+/- 40° (V) |
Audible Noise (Normal) |
31dB |
Audible Noise (Eco) |
27dB |
Input Lag |
16ms |
Resolution Support |
VGA(640 x 480) to FullHD(1920 x 1080) |
HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Video Compatibility |
NTSC, PAL, SECAM |
Horizontal Frequency |
15K-102KHz |
Vertical Scan Rate |
23-120Hz |
Input |
Computer in (share with component): 2
Composite: 1
HDMI: 2 (HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1 |
Output |
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 2W
USB Type A (Power): 1 (5V/1A) |
Control |
RS232 (DB 9-pin male): 1
USB Type Mini B (Services): 1 |
Others |
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz(AC in)
Power Consumption: Normal: 260WStandby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.2kg
Gross Weight: 3.24Kg
Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
Packing Dimensions: 365x300x188mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Total 15 languages |
- Bảo hành: 24 tháng cho thân máy, 12 tháng hoặc 1000 giờ cho bóng đèn.
