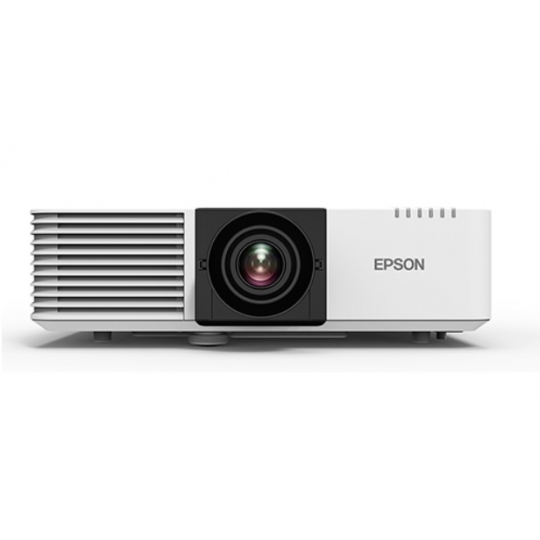

Máy chiếu Wireless WXGA 3LCD Laser EPSON EB-L500W
- Bright, vivid colour - 5,000 lumens colour/white brightness.
- Colourful, widescreen images up to 280inch - WXGA resolution (1280 x 800).
- Breakthrough laser technology - features a laser light source of up to 20,000 hours; plus, Instant ON/OFF.
- Virtually maintenance-free operation - for the life of the optical engine.
- Extraordinary sharpness and detail - up to 2,500,000:1 Dynamic contrast ratio.
- Integrated wireless networking with enterprise-level security - plus wireless content. Sharing with Epson iProjection; and wireless mirroring for Android/Windows 8.1+ devices, or AirPlay for iOS devices (requires Apple TV).
- Advanced installation features - 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner and more.
- Robust connectivity - supports 2x HDMI, VGA, RJ-45, stereo mini and control management tools.
- Constant Brightness Mode8 - fine-tune the brightness setting to help maximise run time.
Đặc tính kỹ thuật
Projection Technology |
Projection Technology |
RGB liquid crystal shutter projection system |
Connectivity |
Network |
Wired Lan: RJ45 x 1
Wireless: ELPAP10 Optional |
Analog Input |
D-Sub 15Pin: 2
HDMI: 2 |
Output Terminal |
D-Sub 15Pin: 1 Shared with Computer 2 |
Audio Input |
Stereo Mini Jack: 2 |
Audio Output |
Stereo Mini Jack: 1 |
Control I/O |
RS-232C: D-Sub 9pin x 1 |
Others |
USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Contents Playback, Copy OSD Settings)
USB Type B: 1 (for Mouse, K/B, Control, Firmware Update) |
Contrast Ratio |
Contrast Ratio |
Over 2,500,000:1 |
Screen Size (Projected Distance) |
Zoom: Wide: |
29” - 280” [0.85 - 8.45 m] |
Zoom: Tele: |
29” - 280” [1.40 - 13.71 m] |
Geometric Correction |
Vertical/Horizontal Keystone |
±30° / ±30° |
Auto Keystone |
Yes |
Quick Corner |
Yes |
Arc Correction |
Yes |
Operating Temperature |
Operating Temperature |
0 - 45 °C (Below 1,500m / 4,921ft)
0 - 40 °C [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)]
(20% - 80% humidity, no condensation) |
Wireless Specifications (Wireless LAN) |
Supported Speed |
IEEE 802.11b (2.4GHz): 11 Mbps
IEEE 802.11g (2.4GHz): 54 Mbps
IEEE 802.11n (2.4GHz): 130 Mbps |
Supported Security Type |
Quick Mode: Open, WPA2-PSK
Advanced Mode: Open, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP |
Supported Connection Mode |
Infrastructure, Access Point |
Brightness |
White Light Output (Normal/ Extended) |
5,000lm/3,500lm |
Colour Light Output |
5,000lm |
Fan Noise |
Fan Noise (Normal / Eco) |
37dB/25dB |
Power |
Power Consumption |
(Normal/Quiet/Extended): 322W / 244W / 244W |
Power Supply Voltage |
100 - 240 V AC ±10%, 50/60 Hz |
Power Consumption (220-240V) |
Laser Diode |
(Normal/Quiet/Extended): 322W / 244W / 244W |
Standby |
(Network/Energy Saving): 2.0W / 0.3W |
Specifications of Main Parts |
LCD |
Native Resolution: WXGA (1280 x 800)
Size: 0.59” (D8 C2fine) |
Lightsource |
Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hours |
Projection Lens |
Throw Ratio: 1.38 - 2.24 (Wide to Tele)
(Standard Zoom Lens ELPLM15, Sold Separately)
Lens Shift, Type: Manual
F-Number: 1.5 - 2.0
Type: Optical Zoom (Manual) / Focus (Manual)
Zoom Ratio: 1-1.6
Focal Length: 18.2 - 29.2 mm |
Dimension Excluding Feet |
Dimension Excluding Feet (D x W x H) |
304 x 440 x 120 mm |
Weight |
Weight |
Approx. 7.4kg |
- Bảo hành: 12 tháng.
