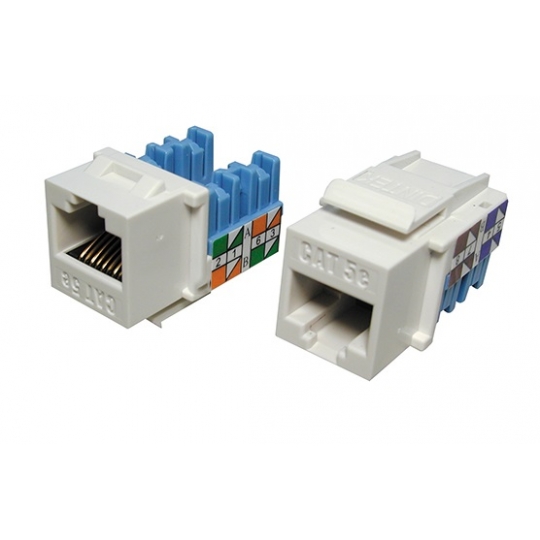

Modular Jack-Ổ cắm Dintek CAT.5E Keystone Jack (03030)

Modular Jack-Ổ cắm Dintek CAT.5E Keystone Jack (1305-03030)

-         Modular Jack - ổ cắm CAT.5e Keystone Jack, Krone type

-         Product code: 1305-03030

-         Cat.5e horizontal type Keystone E-Jack, T568A/ B, white

Industry Standard:

-         UL, listed

-         Meets FCC parts 68

-         EN50173

-         ISO/IEC 11801

-         Meets EIA/TIA T568B: Cat.5e Hardware transmission performance

Physicals:

-         IDC connector accept 22-26 AWG solid wire

-         Jack wiring:50 u” gold plated over 100 u” nickel

-         Housing:High impact flame retardant plastic UL 94V-0 rated

-         IDC connector suitable for 110 punch down and Krone tool

Mechanical:

-         Plug insertion life:750 cycle min.

-         Plug retention force:30 lbs min.

Electrical:

-         Current rating: 1.5 Amps

-         Insulation resistance: 500Mega-ohms min.

-         Contact resistance: 20 milli-ohms max.

-         DC resistance: 0.1 ohms max.

-         Data transmission rates up to 100Mbps

-         Sản xuất tại Taiwan.
