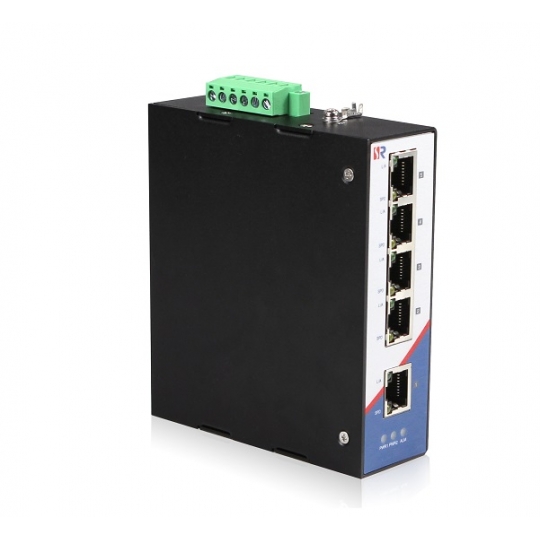

Switch công nghiệp WINTOP YT-RS205-5T

Switch công nghiệp WINTOP YT-RS205-5T

- 4 x10/100BaseT(X) PoE(P.S.E) + 1 x10/100BaseT(X)

- Supports auto-negotiation and auto-MDI/MDIX

- Support P.S.E based on IEEE802.3at standard up to 30W per port

- Industrial 4 grade

- IP40 Aluminum housing protection and Din rail design

- -40°C ~ 85°C operating temperature range

Specifications

Switch Property

- Switching bandwidth: 1Gbps

- Packet buffer size: 512Kb

- Mac table size: 5K

- Jumbo frames: 2K bytes

Port

- Fiber ports: 100Mbps (SC)

- RJ45 port: 10/100Mbps, Full/Half duplex, MDI/MDI-X

- LED light: PWR, ALM, L/A, SPD

Power requirement

- Input voltage: 2 redundant backup, DC 18~75V

Physical

- Housing: Aluminum, IP40 Protection

- Dimensions: 110 x 95 x 30 mm

- Weight: 350g

- Installation: din rail mounting

Environment

- Operating temperature: -40°C ~ 85°C

- Storage temperature: -40°C ~ 85°C

- Relative humidity: 5 ~ 95% (non-condensing)

- Bảo hành: 12 tháng.
