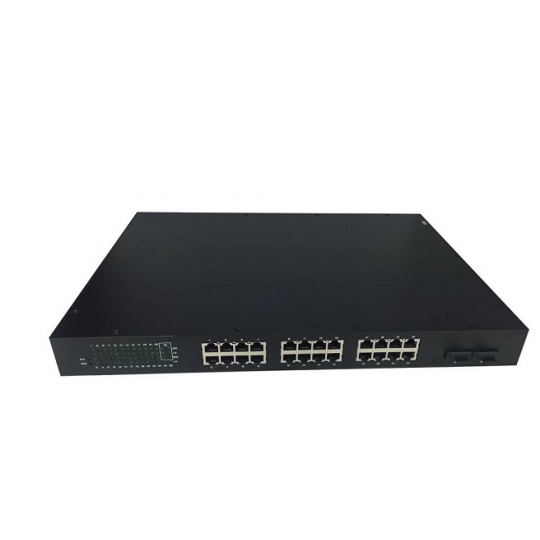

Switch WINTOP YT-CM2026L-2F24T Unmanaged Industrial Rack-Mount

Switch WINTOP YT-CM2026L-2F24T Unmanaged Industrial Rack-Mount

- Provide 24-port 10/100Baes-T(X), 2 port 100Base-X Rack type.

- The electrical port supports 10/100Mbps self-adaptation, all support MDI/MDIX.

- Applicable voltage range AC/DC85 ~ 265V.

- Meet EMC industrial level 4 electromagnetic compatibility standards (lightning protection, static electricity, surge, group pulse).

- Support standard: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT and 100BaseFX.

- Backplane bandwidth: 5.2Gbps.

- MAC address table: 8K.

- Message buffer size: 3Mbits.

- Packet forwarding rate: 3.88 Mpps.

- Input current: Max 0.2A.

- Dimensions: 440x320x 44 mm.

- Weight: 2400g.

- Operating temperature: -40 ~ 75°C (-40 ~ 176°F).
