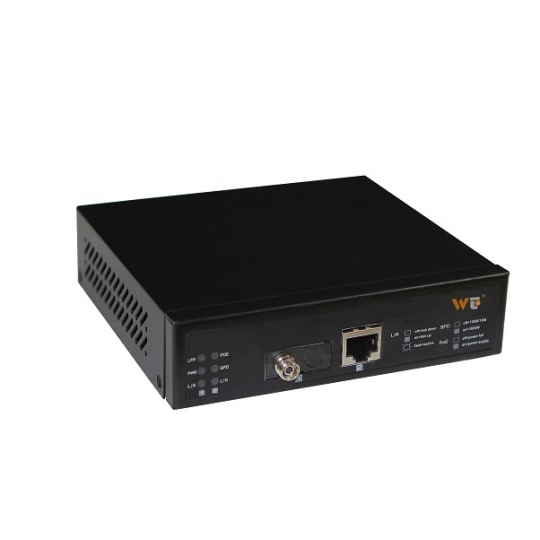

Switch WINTOP YT-MC102-1GF1GT(S) 1-port 10/100/1000Base-T(X)+ 1-port 1000Base-F(X)

Switch WINTOP YT-MC102-1GF1GT(S) 1-port 10/100/1000Base-T(X)+ 1-port 1000Base-F(X)

- Provide 1×10/100/1000Base-T(X) ports and 1×1000Base-F(X) port.

- Interface type: SC/ST/FC or SFP slot.

- Single-mode.

- Transmission distance: 20Km.

- Backplane bandwidth: 2.8Gbps.

- MAC address table: 8K

- Message buffer size: 1Mbits.

- Super large frame rate: 10 KB.

- Packet forwarding rate: 2.08Mpps.

- Input voltage: 100~240V AC.

- Input current: Max 50mA.

- Housing: metal, IP30 protection.

- Size: 185mm x 140mm x 42mm.

- Weight: 600g

- Operating temperature: -20 ~ 60°C (-4 ~ 140°F).

- Relative humidity: 5 ~ 95% (non-condensing).

- Installation method: Desktop/wall-mounted.
