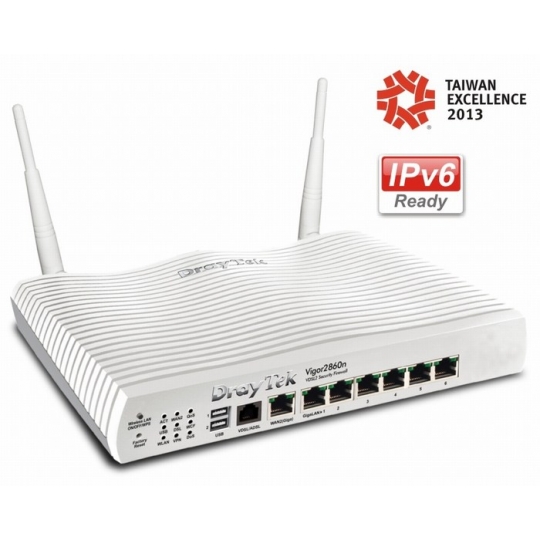

VDSL/ADSL2+ Load Balancing Wireless N Router Draytek Vigor2860n

-       Specification as the same with Vigor2860, but included: Wireless Access point, 802.11B/G/N. WDS, Multi SSID (Isolate member, Isolate VPN), Wireless Rate control (Giới hạn băng thông cho SSID).

-       Support IPTV over Wireless

-       Wireless on/off/WPS Button

-       VDSL2/ADSL2+ Fall-back

-       Fail-over and Load Balancing with a second WAN through a Gigabit Ethernet WAN port

-       Object-based SPI Firewall and CSM (Content Security Management) for network security

-       2 USB ports for 3G/4G mobile, file sharing and network printers

-       32 VPN tunnels with comprehensive secure protocols

-       VLAN for secure and efficient workgroup management

-       6 x Gigabit LAN ports

-       Enterprise class IEEE 802.11n WLAN AP

-       Support Smart Monitor Traffic Analyzer (30-nodes)

-       Flexible Network Management

FEATURES

1. VDSL2/ADSL2/2+

-       ITU-T G.993.2 (VDSL2)

-       ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B

-       DSL Forum Performance Specification: ADSL TR-048/67, TR-100; VDSL: WT-114

-       Erasure Decoding, Increased Interleaver Depth and Re-transmission

-       EFM (IEEE 802.3 ah)

-       VDSL2 Profile: up to 30a

2. WAN Protocol

-       DSL (WAN-1)/Giga Ethernet (WAN-2)

-       DHCP Client

-       Static IP

-       PPPoE

-       PPTP/L2TP (WAN-2 only)

-       PPPoA (ADSL2 only)

-       802.1q Multi-VLAN Tagging

-       USB (WAN-3)

-       PPP/DHCP

-       IPv6

-       Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4

-       Dual Stack: PPP, DHCPv6 Client, Static IPv6

3. USB

-       3G (HSDPA) as WAN

-       Printer Sharing

-       File System

-       Support FAT32 File System

-       Support FTP Function for File Sharing

-       Support Samba for File Sharing

4. VPN

-       Up to 32 VPN Tunnels

-       Protocol : PPTP, IPsec, L2TP, L2TP over IPsec

-       Encryption : MPPE and Hardware-based AES/DES/3DES

-       Authentication : MD5, SHA-1

-       IKE Authentication : Pre-shared Key and Digital Signature (X.509)

-       LAN-to-LAN, Teleworker-to-LAN

-       DHCP over IPsec

-       IPsec NAT-traversal (NAT-T)

-       Dead Peer Detection (DPD)

-       VPN Pass-through

-       VPN Wizard

-       mOTP

-       SSL VPN: 16 Tunnels

-       VPN Trunk (Load Balance/Backup)

5. Multi-WAN

-       Load-Balance/Route Policy

-       (The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)

-       WAN Connection Failover

6. CSM (Content Security Management)

-       IM/P2P Application

-       GlobalView Web Content Filter

-       URL Content Filter :

-       URL Keyword Blocking (Whitelist and Blacklist)

-       Java Applet, Cookies, Active X, Compressed,  Executable, Multimedia File Blocking

-       Excepting Subnets

7. Bandwidth Management

-       QoS

-       Guarantee Bandwidth for VoIP

-       Class-based Bandwidth Guarantee by User-defined Traffic Categories

-       DiffServ Code Point Classifying

-       4-level Priority for Each Direction (Inbound/Outbound)

-       Bandwidth Borrowed

-       Bndwidth/Session Limitation

-       Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping
