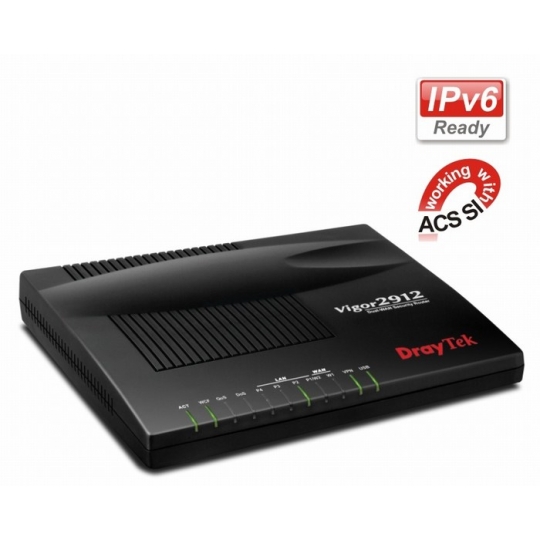

VPN, FIREWALL DUAL-WAN LOAD BALANCING BROADBAND ROUTER DRAYTEK VIGOR2912

Đặc tính kỹ thuật

1. WAN Feature

Ethernet

IPv4-  DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging

IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd

             Dual Stack:DHCPv6 Client, Static IPv6, DSLite

USB WAN

PPP

Outbound Policy-based Load-balance

WAN Connection Failover

30,000 NAT Sessions

2. Firewall

Multi-NAT, DMZ Host, Port-Redirection and Open Port

Object-based Firewall

MAC Address Filter

SPI (Stateful Packet Inspection) (Flow Track)

DoS/DDoS Prevention

IP Address Anti-spoofing

E-mail Alert and Logging via Syslog

Bind IP to MAC Address

Time Schedule Control

IPv6 Firewall

User Management

3. VPN

Up to 16 VPN Tunnels

Protocol : PPTP, IPSec, L2TP, L2TP over IPSec

Encryption : MPPE and Hardware-based AES/DES/3DES

Authentication : MD5, SHA-1

IKE Authentication : Pre-shared key and Digital Signature (X.509)

LAN-to-LAN, Host-to-LAN

IPsec NAT-traversal (NAT-T)

Dead Peer Detection (DPD)

VPN Backup Mode

DHCP over IPSec

VPN Pass-through

VPN Wizard

mOTP

4. USB

Printer Sharing

File Sharing:

Support FAT32 File System

Support FTP Function for File Sharing

Support Samba for File Sharing

3.5G (HSDPA)/4G (LTE) as WAN3

5. Bandwidth Management

QoS :

Class-based Bandwidth Guarantee by User-defined Traffic Categories

DiffServ Code Point Classifying

4-level Priority for Each Direction (Inbound/Outbound)

Bandwidth Borrowed

Bandwidth/Session Limitation

Layer-3 (TOS/DSCP) QoS Mapping

Smart Bandwidth Limitation (Triggered by Traffic/Session)

6. Network Management

Web-based User Interface (HTTP/HTTPS)

Quick Start Wizard

CLI (Command Line Interface, Telnet/SSH)

Administration Access Control

Configuration Backup/Restore

Built-in Diagnostic Function

Firmware Upgrade via TFTP/FTP/HTTP/TR-069

Logging via Syslog

SNMP V2/V3

Management Session Time Out

Two-level Management (Admin/User Mode)

External Device

TR-069

Support Smart Monitor (Up to 30 PCs)

8. Content Security Management

IM/P2P Application

URL Content Filter :

URL Keyword Blocking (White List and Black List)

Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking

Excepting Subnets

GlobalView Web Content Filter (Powered by commtouch)

9. Network Features

DHCP Client/Relay/Server

RADVD for IPv6

DHCPv6 Server

Static IPv6 Address Configuration

IGMP Proxy V2/V3

IGMP Snooping

Dynamic DNS

NTP Client

RADIUS Client

DNS Cache/Proxy

UPnP 30 Sessions

Routing Protocol:

Static Routing

RIP V2

VLAN Tagging(802.1q) on LAN

-       Sản xuất tại Đài loan.

-       Bảo hành: 24 tháng.
