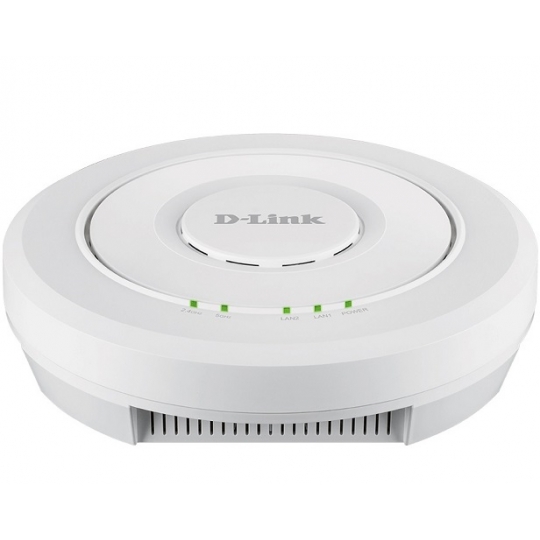

Wireless AC1300 Wave 2 Dual‑Band Unified Access Point D-Link DWL-6620AP

- 802.11ac Wave 2, up to 1.3Gbps speeds

- 2x2 Internal D-Link Smart Antennas

- Up to 32 virtual access points per access point

- Multi-User Multiple-Input Multiple-Output (MU-MIMO)

- Quality of Service (QoS)

- 802.11ac Wave 2, up to 1.3Gbps speeds

- 2x2 Internal D-Link Smart Antennas

- Up to 32 virtual access points per access point

- Multi-User Multiple-Input Multiple-Output (MU-MIMO)

- Quality of Service (QoS)

Specifications

Model	DWL-6620AP
General
Interfaces	802.11b/g/n 2.4 GHz 802.11a/n/ac Wave 2 5 GHz Two 10/100/1000BASE-T LAN PoE ports One RJ45 console port
Antenna	2x2 Internal Smart Antennas
Data Rate	2.4 GHz - Up to 400 Mbps 5 GHz - Up to 867 Mbps
Functionality
Operating Frequency	2400 to 2483.5 MHz 5150 to 5850 MHz
Operating Channels	1 to 13 channels for 2.4 GHz band (per country code) 36 to 165 channels for 5 GHz band (per country code)
System Management	Web-based user interface (HTTP/HTTPs) Command-Line Interface (CLI) Telnet/SSH
Security
SSID Security	Up to 32 SSIDs, 16 per radio 802.1Q VLAN Station Isolation
Wireless Security	WPA/WPA2 Personal/Enterprise AES and TKIP
Detection & Prevention	Rogue and valid AP classification
Authentication	MAC address filtering
Physical
Power Supply	External Power Adapter: 12 VDC 2A (not included) Powered by 802.3at PoE power
Power over Ethernet	10/100/1000Mbps 802.3at PoE input on LAN 1 Port
Max Power Consumption	16.32 W
Dimensions	220 x 55.45 mm
Weight	0.614 kg
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
