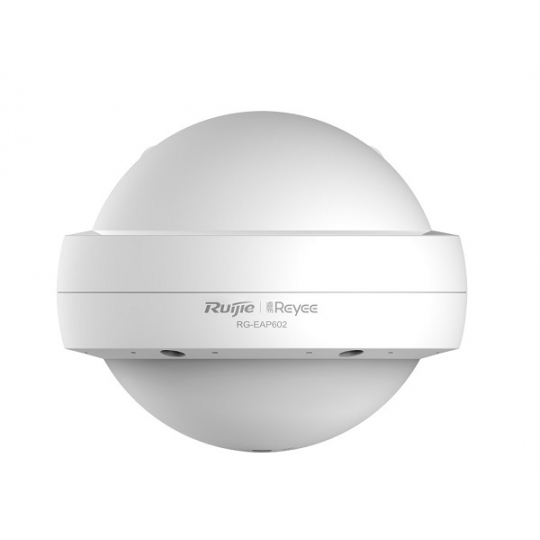

Wireless Access Point RUIJIE RG-EAP602
- AC1300 Dual Band Dual Band outdoor Access Point.
- 867Mbps at 5GHz + 300Mbps at 2.4GHz.
- 2 10/100/1000base-t Ethernet connection port (802.3at/af PoE).
- 4 Internal Antennas.
- 802.11ac Wave2 technology.
- 300m coverage radius.
- Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access.
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App.
- Stable wireless service under harsh environment: Surge Protection 6KV.
- IP Rating IP68 .
- Operating temperature: -30°C~65°C.
Specifications
Model |
RG-EAP602 |
Radio |
2.4GHz & 5GHz dual-band dual-stream |
Protocol |
2.4GHz: 802.11 b/g/n; 5GHz: 802.11a/b/g/n/ac |
Spatial Streams |
2.4GHz: 2 Spatial Streams, 2x2 MIMO
5GHz: 2 Spatial Streams, 2x2 MIMO |
Max Throughput |
2.4GHz: 300Mbps
5GHz: 867Mbps
Up to 1167Mbps per AP |
Transmit Power |
≤500mw(27dBm, RF transmit power only) |
Dimensions |
200*220*166 mm (excluding mounting kits) |
Weight |
1kg (excluding mounting kits) |
Service Ports |
2 10/100/1000Mbps Ethernet ports (one of which supports 802.3af/at PoE)
1 reset button |
Reset |
1 DC12V power socket |
LED Indicators |
Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator |
Power Supply |
802.3af/ 802.3at
12VDC/ 1.5A |
Built-in Antennas |
Built-in omnidirectional antennas (basic gain 3dBi) |
Power Consumption |
<12.95W |
Coverage Radius |
Open and unobstructed direction: 2.4G 100m, 5G 300m |
Surge Protection |
6000V |
IP Rating |
Above IP68 |
Environment |
Operating temperature: -30°C~65°C |
Storage temperature: -40°C~85°C |
Operating humidity: 0%~100% (non-condensing) |
Storage humidity: 0%~100% (non-condensing) |
MTBF |
>250000H |
Software |
WLAN |
Maximum number of clients: 164 |
Recommended number of clients: 96 |
Up to 8 SSIDs |
Support SSID hiding |
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
SSID-based and radio-based STA limit |
Support Layer 2 user isolation |
Security |
Support PSK authentication
Support static blacklist and whitelist
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
Routing |
Support static IP address and DHCP |
Management and maintenance |
Support local or remote management with app
Support local management with web
Support remote management with Ruijie Cloud platform |
- Bảo hành: 3 năm.
