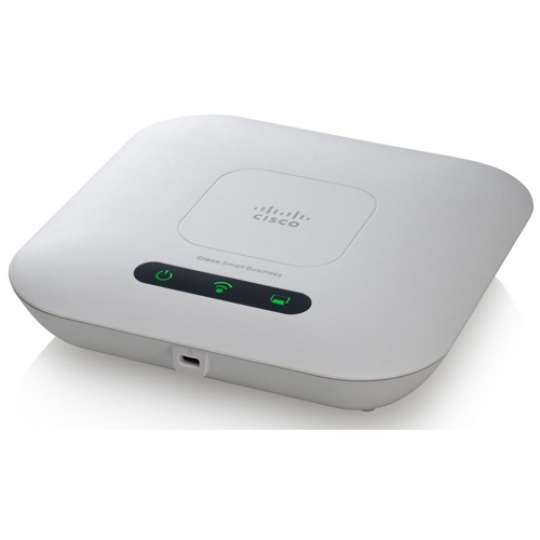

Wireless-N Access Point with PoE Cisco WAP121
Wireless-N Access Point with PoE Cisco WAP121
- Single Radio 802.11n Access Point w/PoE (EU)
- Provides affordable high-bandwidth 802.11n wireless connectivity for demanding applications
- Easy to set up and manage by using the configuration wizard
- Single Point Setup simplifies the deployment of multiple wireless access points
- Safeguards business information with enhanced security, including advanced encryption, highly secure authentication, and rogue access point detection
- Attractive design with internal antennas offers flexible installation options
- Can connect to a Power over Ethernet (PoE) switch or injector, simplifying installation and eliminating the need for expensive additional wiring
CÔNG TY TNHH CÔNG NGHỆ VIỄN THÔNG GIA PHẠM
43/15 Khu Phố Tân Phước, Phường Tân Bình, Thành Phố Dĩ An, Tỉnh Bình Dương.
Mã Số Thuế: 3702984737
Hotline: 0937 87 63 70
Email: support@giaphamtech.com| Website: https://www.giaphamtech.com
Wireless-N Access Point with PoE Cisco WAP121
- Single Radio 802.11n Access Point w/PoE (EU)
- Provides affordable high-bandwidth 802.11n wireless connectivity for demanding applications
- Easy to set up and manage by using the configuration wizard
- Single Point Setup simplifies the deployment of multiple wireless access points
- Safeguards business information with enhanced security, including advanced encryption, highly secure authentication, and rogue access point detection
- Attractive design with internal antennas offers flexible installation options
- Can connect to a Power over Ethernet (PoE) switch or injector, simplifying installation and eliminating the need for expensive additional wiring
Features
- Highly secure, high-speed 802.11n wireless networking delivers enhanced throughput and extended range for bandwidth-intensive applications.
- Wizard-based setup and configuration enables fast, simple deployment.
- Single Point Setup controllerless multi-access point deployment and management technology makes configuration simple.
- Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, helps protect sensitive business information.
- Support for PoE enables easy installation without expensive additional wiring.
- Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
- Elegant, compact design with internal antennas and versatile mounting kit enables installation on a ceiling, wall, or desktop.
- Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
- Power-saving sleep mode and port control features help maximize energy efficiency.
- Highly secure guest access enables safe wireless connectivity for visitors.
- Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
|
Specifications |
Description |
|
Standards |
IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
|
Ports |
LAN Fast Ethernet auto sensing, DC jack |
|
Switch |
Power button (on/off) |
|
Buttons |
Power (on/off) push button, Reset button |
|
Cabling type |
Category 5e or better |
|
Antennas |
Internal antennas optimized for wall, ceiling, or desktop placement |
|
LEDs |
Power, WLAN, LAN |
|
Operating system |
Linux |
|
Physical Interfaces |
|
|
Ports |
10BASE-T/100BASE-TX Ethernet, 12V DC power with support for 802.3af PoE |
|
Power supply |
External 12V 0.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE |
|
Buttons |
Power (on/off) push button; Reset button |
|
Lock slot |
Slot for Kensington lock |
|
LED |
Power, Wireless, Ethernet |
|
Physical Specifications |
|
|
Physical dimensions (W x D x H) |
4.89 x 4.89 1.38 in. (124.17 x 124.17 x 35 mm) |
|
Weight |
0.37 lb or 168 g |
|
PoE |
|
|
PoE |
802.3af |
|
Peak PoE power |
6W |
|
Network Capabilities |
|
|
VLAN support |
Yes |
|
Number of VLANs |
1 management VLAN plus 4 VLANs for Service Set ID (SSID) |
|
Multiple SSIDs |
4 |
|
802.1X supplicant |
Yes |
|
SSID to VLAN mapping |
Yes |
|
Auto channel selection |
Yes |
|
Spanning tree |
Yes |
|
Load balancing |
Yes |
|
IPv6 |
Yes |
|
- IPv6 host support |
|
|
- IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
|
|
Layer 2 |
802.1Q-based VLANS, 4 active VLANS plus 1 management VLAN |
|
Security |
|
|
WPA/WPA2/WEP |
Yes, including Enterprise authentication |
|
Access control |
Yes, management access control list (ACL) plus MAC ACL |
|
Secure management |
HTTPS |
|
Wi-Fi Protected Setup (WPS) |
Yes (soft WPS, no hardware push button) |
|
SSID broadcast |
Yes |
|
Rogue access point detection |
Yes |
|
Mounting and Physical Security |
|
|
Multiple mounting options |
Desktop installation; mounting bracket included for easy ceiling or wall mounting |
|
Physical security lock |
Kensington lock slot |
|
Quality of Service |
|
|
QoS |
Wi-Fi Multimedia & Traffic Specification (WMM TSPEC) |
|
Performance |
|
|
Wireless throughput |
Up to 300 Mbps data rate (real-world throughput will vary) |
|
Recommended user support |
Up to 16 connected users, or 10 active users. |
|
Configuration |
|
|
Web user interface |
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
|
Multi-Access Point Management |
|
|
Single Point Setup |
Yes |
|
Maximum access points per cluster |
4 |
|
Active clients per cluster |
|
