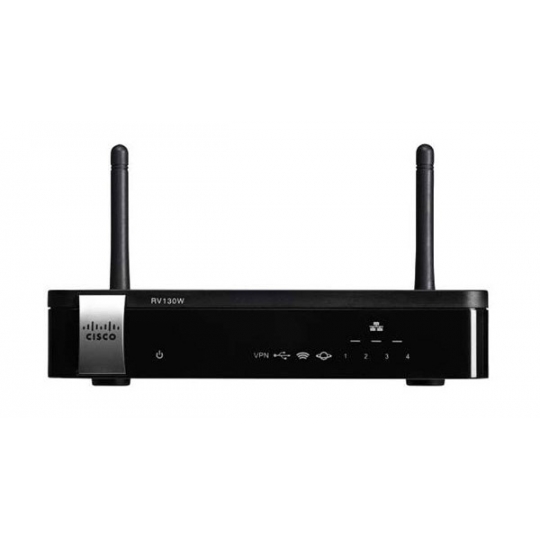

Wireless-N Multifunction VPN Router Cisco RV130W (RV130W-E-K9-G5)

Specifications

Description

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723)

Ports

LAN, WAN, USB

Switch

Power button (on/off)

Buttons

Reset

Cabling Type

Category 5e or better

LEDs

Power, VPN, USB, WAN, Wireless, LAN (ports 1- 4)

Operating System

Linux

Network

Network Protocols

DHCP, PPPoE, PPTP, SIP, ALG

Layer 2 Tunneling Protocol (L2TP)

DNS proxy

DHCP relay agent

IGMP proxy and multicast forwarding

Rapid Spanning Tree Protocol (RSTP)

Dynamic Domain Name System (TZO, DynDNS, 3322.org, NOIP)

Network Address Translation (NAT), Port Address Translation (PAT)

One-to-One NAT

Port management

Port mirroring

Software configurable DMZ to any LAN IP address

LAN

Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch

WAN

Single (1) 10/100/1000 Mbps Gigabit WAN port

WLAN

Built-in high-speed 802.11n wireless access point

Network Address Translation (NAT)

Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol

VLAN Support

Port-based and 802.1Q tag-based VLANs

Number of  VLANs

5 active VLANs (3-4096 range)

IPv6

Dual-stack IPv4 and IPv6

6 to 4 tunneling

Stateless address auto-configuration

DHCPv6 Server for IPv6 Clients on LAN

DHCP v6 client for WAN connectivity

Internet Control Message Protocol (ICMP) v6

Static IPv6 Routing

Dynamic IPv6 Routing with RIPng

Layer 2

802.1Q-based VLANs, 5 active VLANs

Security

Firewall

Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ

DoS Attacks Prevented: SYN Flood Detect Rate, Echo Storm, ICMP Flood, UDP Flood, TCP Flood, Block Java, Cookies, Active-X, HTTP Proxy

Access Control

IP access control lists; MAC-based wireless access control

Content Filtering

Static URL blocking or keyword blocking

Secure Management

HTTPS, username/ password complexity

WPS

Wi-Fi Protected Setup

User Privileges

2 levels of access: Admin and guest

VPN

Gateway-to-gateway IPsec VPN

10 gateway-to-gateway IPSec tunnels

Client-to-gateway IPsec VPN

10 client-to-gateway IPsec tunnels using The Green Bow and Shrew Soft VPN client

PPTP VPN

10 PPTP tunnels for remote client access

VPN Pass-through

IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through

Quality of  Service

QoS

802.1p port-based priority on LAN port, application-based priority on WAN port 3 queues

Differentiated Services Code Point support (DSCP)

Class of Service (CoS)

Bandwidth Management for service prioritization

Jumbo Frame

Supports Jumbo Frame on Gigabit ports - at least 1536B

Performance

NAT Throughput

800 Mbps

Concurrent Sessions

12,000

IPsec VPN Throughput (3DES/AES)

50 Mbps

Management

Management Protocols

Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP)

Languages

GUI supports English, French, Italian, German, and Spanish

Wireless

WLAN

2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility

Operating channels

11 North America, 13 most of Europe, auto channels selection

Wireless isolation

Wireless isolation between clients

External antennas

2 fixed antennas

Antenna gain in dBi

2 dBi

Transmit power
