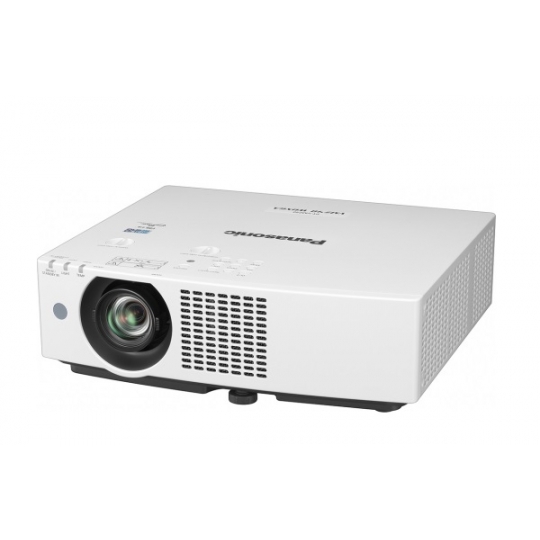

Máy chiếu Laser Panasonic PT-VMZ40
- Hỗ trợ công nghệ LCD.
- Light source: Laser Diode.
- Độ sáng: 4,500 ANSI Lumens.
- Độ tương phản: 3,000,000:1.
- Độ phân giải: WUXGA (1,900 x 1,200).
- Tuổi thọ bóng đèn: 20,000 giờ.
- Tự động dò tìm tín hiệu đầu vào.
- Chức năng chỉnh vuông hình ảnh.
- Kích thước chiếu: 30inch–300inch/16:10.
- Cổng tín hiệu vào: HDMI x 2, S-Video, Audio, RGB, RJ-45.
- Điều khiển máy chiếu qua mạng LAN.
- Kích thước: 399 x 133 x 348 mm.
- Trọng lượng: 7,2kg.
Đặc tính kỹ thuật
Power supply |
AC 100V - 240V, (3.8A-1.6A) 50Hz/60Hz |
Power consumption |
365W
NORMAL: 365W ECO: 295W SHUTTER: 70W |
BTU value |
Max 1246BTU |
LCD panel |
Panel size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Projection system: Transparent LCD panel (× 3, R/G/B)system
Pixels: 2,304,000 (1920 × 1200) |
Light source |
Laser Diode |
Light output |
4500 lm (When [LIGHT POWER] is set to [NORMAL])
3000 lm (When [LIGHT POWER] is set to [ECO][QUIET]) |
Time until light output declines to 50% |
20,000 hours |
Filter Replacement Cycle |
20,000 hours (Under the dust conditions of 0.08mg/㎥)
10,000 hours (Under the dust conditions of 0.15mg/㎥)
Filter can be washed and reused up to two times. |
Resolution |
1920 × 1200 pixels
(Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.) |
Contrast ratio |
3,000,000:1 |
Screen size |
0.76–7.62 m (30–300 inches) (16:10 aspect ratio) |
Center to corner zone ratio |
85% |
Lens |
1.6x Manual zoom (Throw ratio:1.09-1.77:1) / Manual focus lens, F=1.6–2.12, f=15.30-24.64 mm |
Compatible signal |
VIDEO: fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz |
RGB: Resolution: 640 × 400 to 1920 × 1200
Dot clock frequency: 162 MHz or less
PIAS (Panasonic Intelligent Auto Scanning) system |
YPBPR (YCBCR): Resolution: 480i/576i to 1920 × 1080
Dot clock frequency: 148.5 MHz or less
The HD/SYNC and VD terminals do not support 3 value SYNC |
HDMI: Moving image signal resolution: 480i/576i to 4096 x 2160
Still image signal resolution: 640 × 400 to 1920 × 1200 (non-interlace)
Dot clock frequency: 25 MHz to 297 MHz |
- Xuất xứ: Trung Quốc.
- Bảo hành: 24 tháng cho máy, 12 tháng hoặc 1000 giờ cho bóng đèn chiếu tùy theo điều kiện nào đến trước.
